Description de l'article/illustrations du produit

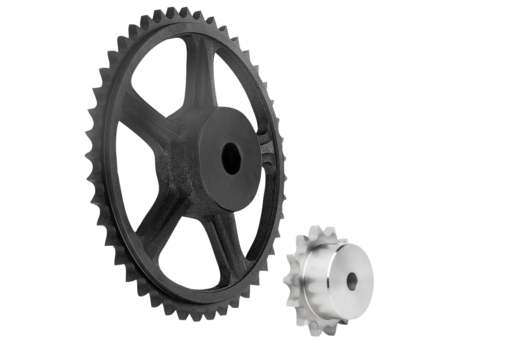

Pignons simples 5/8“ x 3/8“ DIN ISO 606
  • Pignons simples 5/8“ x 3/8“ DIN ISO 606
DescriptionMatière :Acier C45.
À partir de 38 dents en fonte grise GG22.
Finition :Naturel, non trempé.Nota :Pignons avec moyeu d'un côté pour chaînes à rouleaux selon DIN ISO 606. Les pignons sont pré-percés.
TéléchargementLes informations sont ici réunies sous forme de fichier PDF :
 Fiche technique 22252 Pignons simples 5/8“ x 3/8“ DIN ISO 606 367 kB

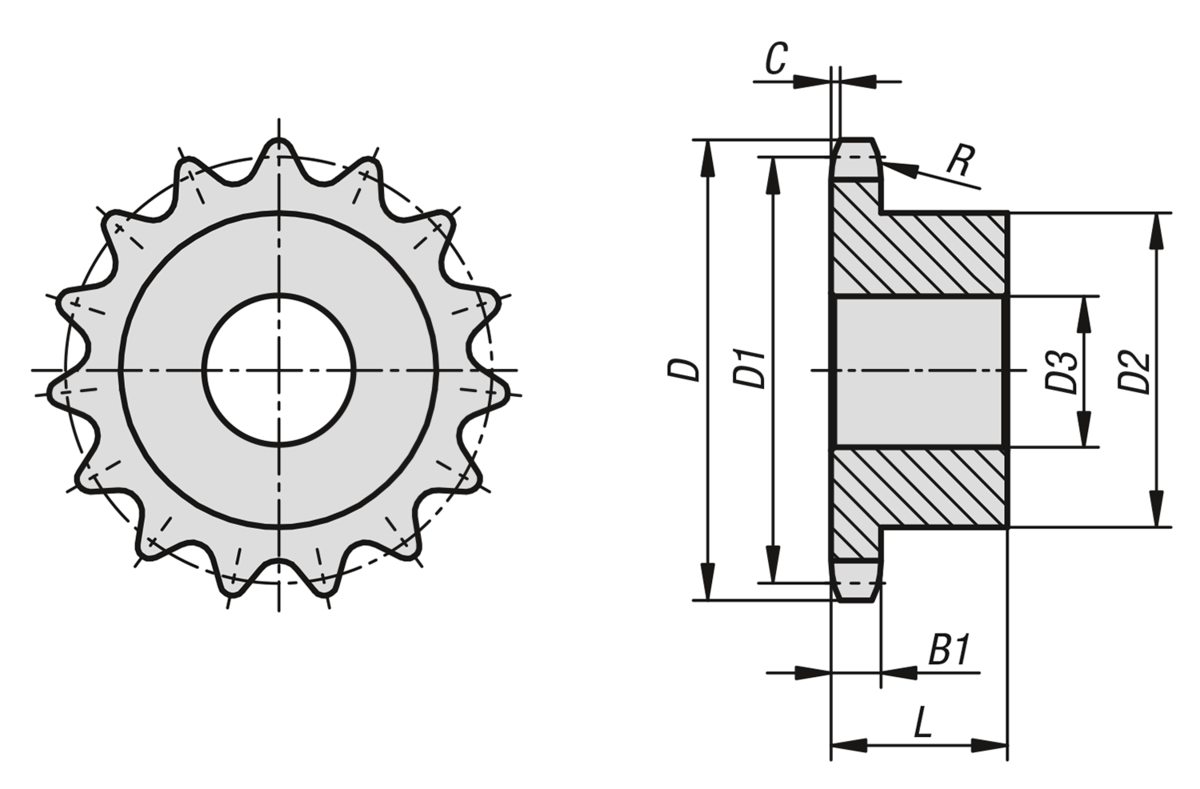

Dessins

Pignons simples 5/8“ x 3/8“ DIN ISO 606

Sélection/filtre d'articles

Référence

N° ISODivision
pouces
Division
mm
Nombre de
dents
DD1D2D3
max.
B1LCRCAOAcc.PrixCommander
22252-1058030800810 B-15/8" x 3/8"15,875 x 9,65848,441,4825109,1251,616 2,09 €
22252-1058030800910 B-15/8" x 3/8"15,875 x 9,65953,346,4230109,1251,616 2,55 €
22252-1058030801010 B-15/8" x 3/8"15,875 x 9,651058,351,3735109,1251,616 3,08 €
22252-1058030801110 B-15/8" x 3/8"15,875 x 9,651163,256,3437129,1301,616 3,78 €
22252-1058030801210 B-15/8" x 3/8"15,875 x 9,651268,261,3442129,1301,616 4,22 €
22252-1058030801310 B-15/8" x 3/8"15,875 x 9,651373,266,3247129,1301,616 4,73 €
22252-1058030801410 B-15/8" x 3/8"15,875 x 9,651478,271,3452129,1301,616 5,19 €
22252-1058030801510 B-15/8" x 3/8"15,875 x 9,651583,276,3657129,1301,616 5,96 €
22252-1058030801610 B-15/8" x 3/8"15,875 x 9,651688,381,3760129,1301,616 6,51 €
22252-1058030801710 B-15/8" x 3/8"15,875 x 9,651793,386,3960129,1301,616 7,26 €
22252-1058030801810 B-15/8" x 3/8"15,875 x 9,651898,391,4270149,1301,616 8,01 €
22252-1058030801910 B-15/8" x 3/8"15,875 x 9,6519103,396,4570149,1301,616 8,60 €
22252-1058030802010 B-15/8" x 3/8"15,875 x 9,6520108,4101,4975149,1301,616 9,28 €
22252-1058030802110 B-15/8" x 3/8"15,875 x 9,6521113,4106,5275169,1301,616 9,90 €
22252-1058030802210 B-15/8" x 3/8"15,875 x 9,6522118,4111,5580169,1301,616 10,71 €
22252-1058030802310 B-15/8" x 3/8"15,875 x 9,6523123,5116,5880169,1301,616 11,18 €
22252-1058030802410 B-15/8" x 3/8"15,875 x 9,6524128,5121,6280169,1301,616 11,55 €
22252-1058030802510 B-15/8" x 3/8"15,875 x 9,6525133,6126,6680169,1301,616 12,23 €
22252-1058030802610 B-15/8" x 3/8"15,875 x 9,6526138,6131,785209,1351,616 14,56 €
22252-1058030802710 B-15/8" x 3/8"15,875 x 9,6527143,6136,7585209,1351,616 15,86 €
22252-1058030802810 B-15/8" x 3/8"15,875 x 9,6528148,7141,7890209,1351,616 16,68 €
22252-1058030802910 B-15/8" x 3/8"15,875 x 9,6529153,7146,8390209,1351,616 17,49 €
22252-1058030803010 B-15/8" x 3/8"15,875 x 9,6530158,8151,8790209,1351,616 18,00 €
22252-1058030803110 B-15/8" x 3/8"15,875 x 9,6531163,8156,9295209,1351,616 19,54 €
22252-1058030803210 B-15/8" x 3/8"15,875 x 9,6532168,9161,9595209,1351,616 20,26 €
22252-1058030803310 B-15/8" x 3/8"15,875 x 9,6533173,916795209,1351,616 21,08 €
22252-1058030803410 B-15/8" x 3/8"15,875 x 9,6534178,9172,0595209,1351,616 21,69 €
22252-1058030803510 B-15/8" x 3/8"15,875 x 9,6535184177,195209,1351,616 22,62 €
22252-1058030803610 B-15/8" x 3/8"15,875 x 9,6536189182,15100209,1351,616 23,91 €
22252-1058030803710 B-15/8" x 3/8"15,875 x 9,6537194,1187,2100209,1351,616 24,68 €
22252-1058030803810 B-15/8" x 3/8"15,875 x 9,6538199,1192,2480249,1401,616 25,54 €
22252-1058030804510 B-15/8" x 3/8"15,875 x 9,6545236227,5880249,1401,616 26,99 €
22252-1058030805710 B-15/8" x 3/8"15,875 x 9,6557296,6288,1890249,1451,616 40,19 €
22252-1058030807610 B-15/8" x 3/8"15,875 x 9,6576392,5384,1690249,1501,616 63,65 €
22252-1058030809510 B-15/8" x 3/8"15,875 x 9,6595488,5480,14100249,1561,616 107,58 €
22252-1058030811410 B-15/8" x 3/8"15,875 x 9,65114-576,13100249,1561,616 163,86 €
