{"product":{"productId":"agid.22508","price":3472.19,"name":"Plaques de base en fonte grise avec trame modulaire"},"currency":"EUR"}
Matière
GJL 300.
Finition
Faces d´appui et de fixation rectifiées.
Afficher plus
Afficher moins
Description
Matière
GJL 300.
Finition
Faces d´appui et de fixation rectifiées.
Nota
Grid spacing 50 ±0.02 mm.

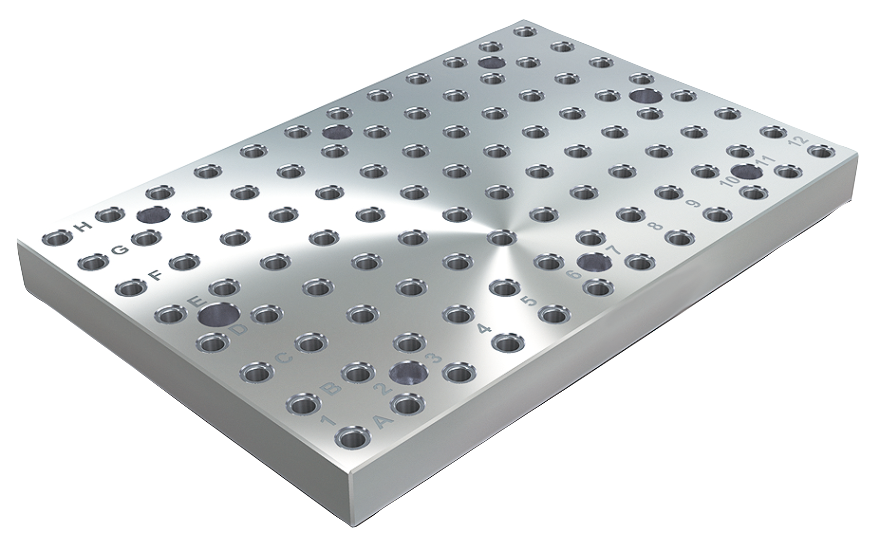

Baseplates with grid holes are used for constructing modular fixtures. These baseplates are positioned and mounted directly on machine tables.
The two aligning holes are used to align the baseplate on the machine table.
Fastening holes are produced by the customer to suit their machine table.
The alphanumerically labelled grid holes guarantee a defined assignment of clamping elements by repeat setups.
Please order positioning pins to equip the baseplates separately.
Please order protection plugs to plug unused grid holes separately..
Ring bolts for hoisting are supplied.
Other dimensions available on request.
Baseplates with grid holes are used for constructing modular fixtures. These baseplates are positioned and mounted directly on machine tables.
The two aligning holes are used to align the baseplate on the machine table.
Fastening holes are produced by the customer to suit their machine table.
The alphanumerically labelled grid holes guarantee a defined assignment of clamping elements by repeat setups.
Please order positioning pins to equip the baseplates separately.
Please order protection plugs to plug unused grid holes separately..
Ring bolts for hoisting are supplied.
Other dimensions available on request.
Drawing reference
1) Alésage de positionnement
