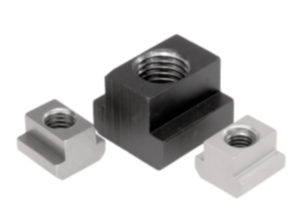

07060Tasseau pour rainures en T DIN 508 extension de gamme |
retour |
|
Description de l'article/illustrations du produit |
|
|
DescriptionMatière :Acier de traitement, classe 10, Aluminium EN AW-7075 ou Inox 1.4305.Finition :Acier bruni. Aluminium et Inox naturels.Nota :Les tasseaux en aluminium sont équipés d’inserts taraudés en acier.Caractéristiques : TéléchargementLes informations sont ici réunies sous forme de fichier PDF :
Vous cherchez les données CAO ? Vous les trouverez directement dans le tableau produit.
|

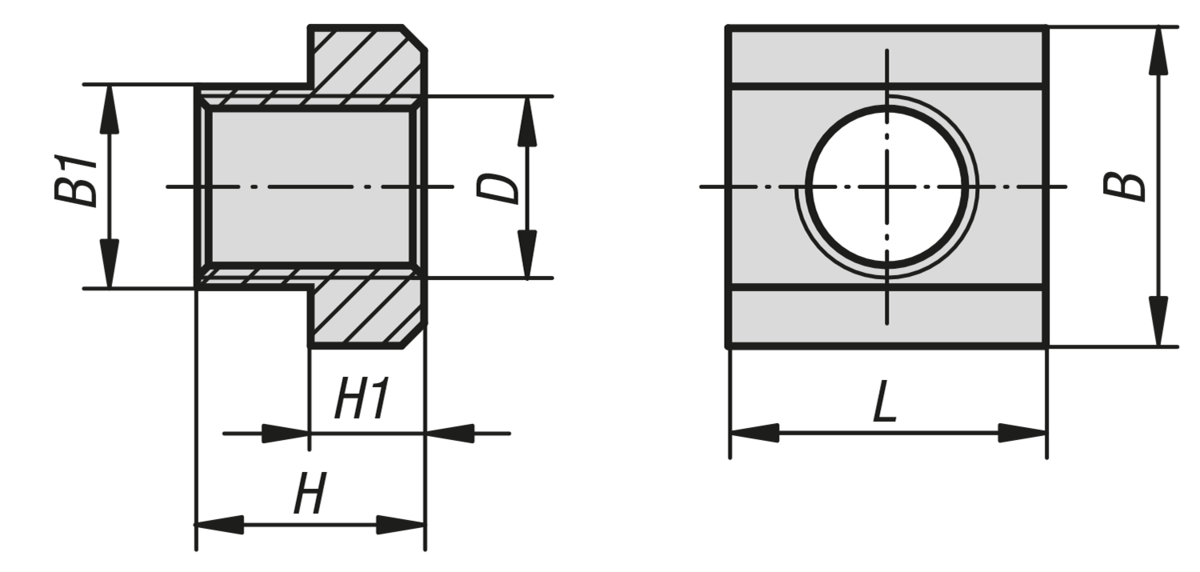

Référence acier de traitement | Référence aluminium | Référence acier inoxydable A2 | Surface corps | Largeur de la rainure | B | B1 | D | H | H1 | L | Filtre |
---|
07060-05 | - | - | naturel (noir) | 6 | 10 | 5,6 | M5/M4 | 8 | 4 | 10 |  | - | 07060-204 | - | naturel | 6 | 10 | 5,6 | M5/M4 | 8 | 4 | 10 |  | 07060-06 | - | - | naturel (noir) | 8 | 13 | 7,6 | M6 | 10 | 6 | 13 |  | 07060-061 | - | - | naturel (noir) | 10 | 15 | 9,6 | M6 | 12 | 6 | 15 |  | 07060-08 | - | - | naturel (noir) | 10 | 15 | 9,6 | M8 | 12 | 6 | 15 |  | 07060-081 | - | - | naturel (noir) | 12 | 18 | 11,6 | M8 | 14 | 7 | 18 |  | 07060-10 | - | - | naturel (noir) | 12 | 18 | 11,6 | M10 | 14 | 7 | 18 |  | 07060-082 | - | - | naturel (noir) | 14 | 22 | 13,6 | M8 | 16 | 8 | 22 |  | 07060-101 | - | - | naturel (noir) | 14 | 22 | 13,6 | M10 | 16 | 8 | 22 |  | 07060-12 | - | - | naturel (noir) | 14 | 22 | 13,6 | M12 | 16 | 8 | 22 |  | - | - | 07060-812 | naturel | 14 | 22 | 13,6 | M12 | 16 | 8 | 22 |  | 07060-121 | - | - | naturel (noir) | 16 | 25 | 15,6 | M12 | 18 | 9 | 25 |  | 07060-14 | - | - | naturel (noir) | 16 | 25 | 15,6 | M14 | 18 | 9 | 25 |  | 07060-122 | - | - | naturel (noir) | 18 | 28 | 17,6 | M12 | 20 | 10 | 28 |  | 07060-141 | - | - | naturel (noir) | 18 | 28 | 17,6 | M14 | 20 | 10 | 28 |  | 07060-16 | - | - | naturel (noir) | 18 | 28 | 17,6 | M16 | 20 | 10 | 28 |  | 07060-123 | - | - | naturel (noir) | 20 | 32 | 19,6 | M12 | 24 | 12 | 32 |  | 07060-161 | - | - | naturel (noir) | 20 | 32 | 19,6 | M16 | 24 | 12 | 32 |  | 07060-18 | - | - | naturel (noir) | 20 | 32 | 19,6 | M18 | 24 | 12 | 32 |  | - | 07060-216 | - | naturel | 22 | 35 | 21,6 | M12/M16 | 28 | 14 | 35 |  | 07060-124 | - | - | naturel (noir) | 22 | 35 | 21,6 | M12/M16 | 28 | 14 | 35 |  | 07060-181 | - | - | naturel (noir) | 22 | 35 | 21,6 | M18 | 28 | 14 | 35 |  | 07060-20 | - | - | naturel (noir) | 22 | 35 | 21,6 | M20 | 28 | 14 | 35 |  | 07060-163 | - | - | naturel (noir) | 24 | 40 | 23,6 | M16 | 32 | 16 | 40 |  | 07060-201 | - | - | naturel (noir) | 24 | 40 | 23,6 | M20 | 32 | 16 | 40 |  | 07060-22 | - | - | naturel (noir) | 24 | 40 | 23,6 | M22 | 32 | 16 | 40 |  | 07060-164 | - | - | naturel (noir) | 28 | 44 | 27,6 | M16 | 36 | 18 | 44 |  | 07060-202 | - | - | naturel (noir) | 28 | 44 | 27,6 | M20 | 36 | 18 | 44 |  | 07060-24 | - | - | naturel (noir) | 28 | 44 | 27,6 | M24 | 36 | 18 | 44 |  | 07060-27 | - | - | naturel (noir) | 32 | 50 | 31,5 | M27 | 40 | 20 | 50 |  | 07060-241 | - | - | naturel (noir) | 36 | 54 | 35,5 | M24 | 44 | 22 | 54 |  | 07060-30 | - | - | naturel (noir) | 36 | 54 | 35,5 | M30 | 44 | 22 | 54 |  | 07060-36 | - | - | naturel (noir) | 42 | 65 | 41,5 | M36 | 52 | 26 | 65 |  | - | 07060-206 | 07060-806 | naturel | 8 | 13 | 7,6 | M6 | 10 | 6 | 13 |  | - | 07060-2061 | - | naturel | 10 | 15 | 9,6 | M6 | 12 | 6 | 15 |  | - | 07060-208 | - | naturel | 12 | 18 | 11,6 | M8 | 14 | 7 | 18 |  | - | 07060-210 | - | naturel | 14 | 22 | 13,6 | M10 | 16 | 8 | 22 |  | - | - | 07060-808 | naturel | 10 | 15 | 9,6 | M8 | 12 | 6 | 15 |  | - | - | 07060-810 | naturel | 12 | 18 | 11,6 | M10 | 14 | 7 | 18 |  | - | - | 07060-814 | naturel | 16 | 25 | 15,6 | M14 | 18 | 9 | 25 |  | - | - | 07060-816 | naturel | 18 | 28 | 17,6 | M16 | 20 | 10 | 28 |  |
