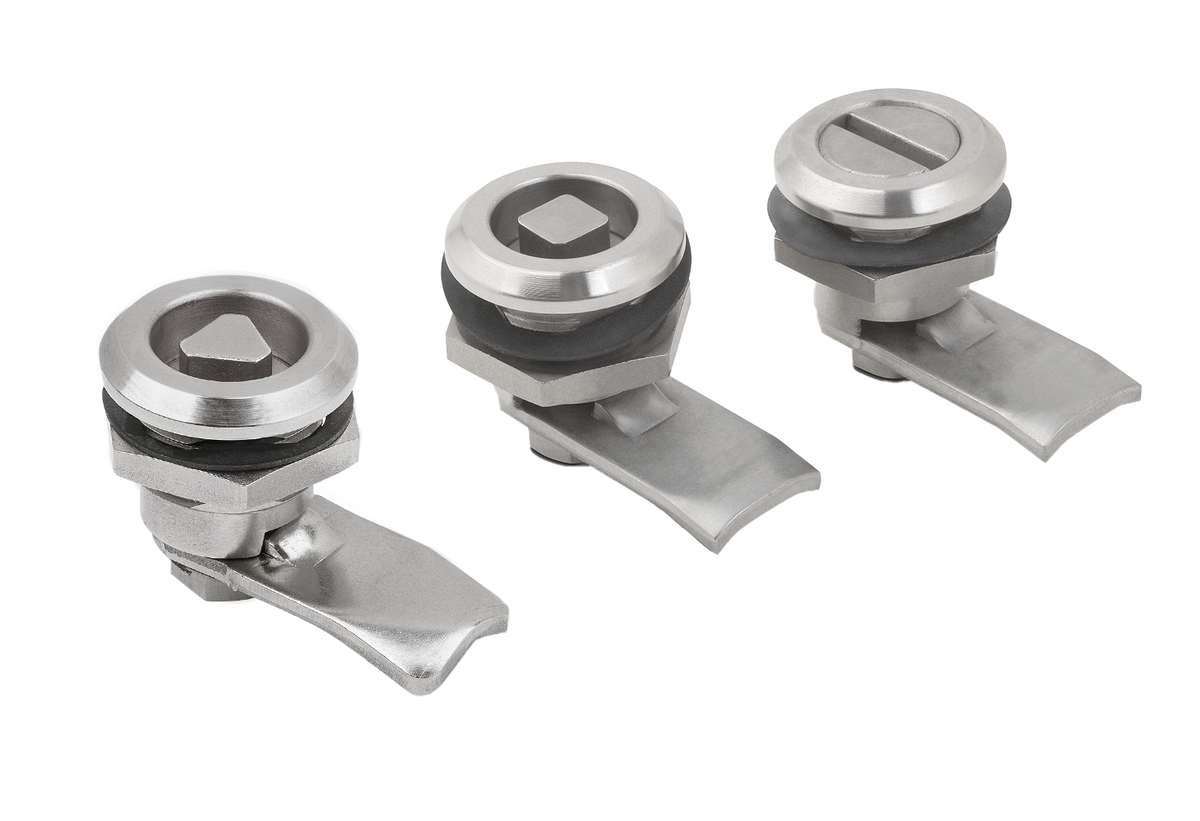

{"product":{"productId":"agid.32866","price":19.4,"name":"Verrous quart de tour en inox, compacts, diamètre du corps 20 mm"},"currency":"EUR"}
Matière
Verrou quart de tour : Inox 1.4401.
Came : Inox 1.4301.
Finition
Naturel.
Show more
Show less
Description
Matière
Verrou quart de tour : Inox 1.4401.
Came : Inox 1.4301.
Finition
Naturel.
Nota
Le verrou quart de tour peut être intégré prémonté et présente une course de fermeture de 90°. Montage possible à droite ou à gauche. Protection contre l'eau et la poussière selon IP65, conformément à EN 60529.
Indication de dessin
Actionnement :
a) Profil carré 6 mm
b) Fente
c) Clé à trois pans 6,5 mm
1) Joint torique
2) Joint plat
a) Profil carré 6 mm
b) Fente
c) Clé à trois pans 6,5 mm
1) Joint torique
2) Joint plat
