{"product":{"productId":"agid.27916","price":38.14,"name":"Verrous quart de tour en inox, tête rotative en plastique avec tige rétractable"},"currency":"EUR"}
- Élément de fixation pour le raccordement de deux plaques séparées
- Idéal pour les espaces réduits grâce à la tige rétractable
- Clic à la fermeture
- Possibilité de montage pour plaques d'épaisseur 6 à 14 mm
- Vis de fixation incluses
Description
Product description

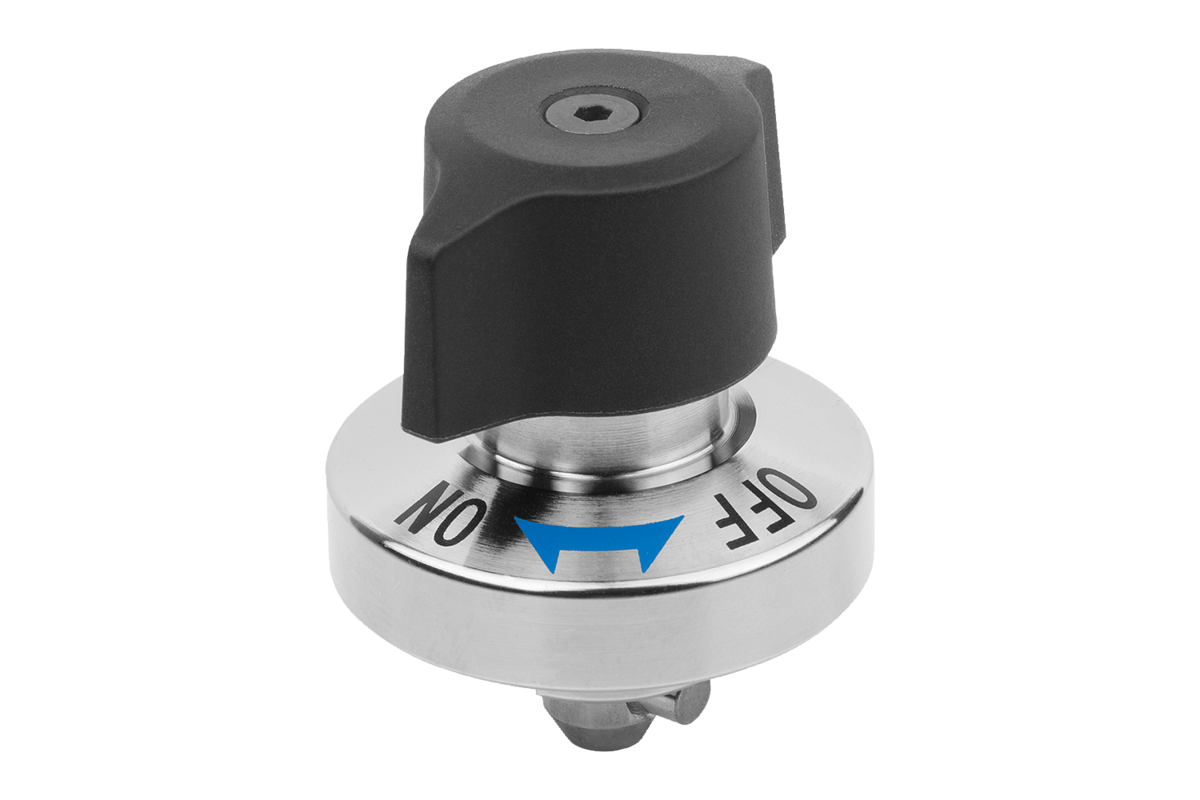

Quarter-turn clamp locks are used for replacing and locking fixtures or hatches quickly and easily.
Toolless clamping shortens setup times.
Toolless clamping shortens setup times.
Material
Housing stainless steel.
Pin steel.
Pin stainless steel.
Knob thermoplastic PA (polyamide).
Pin steel.
Pin stainless steel.
Knob thermoplastic PA (polyamide).
Version
Housing bright.
Pin nickel plated.
Pin bright.
Knob reinforced PA fibreglass, black.
Pin nickel plated.
Pin bright.
Knob reinforced PA fibreglass, black.
Note

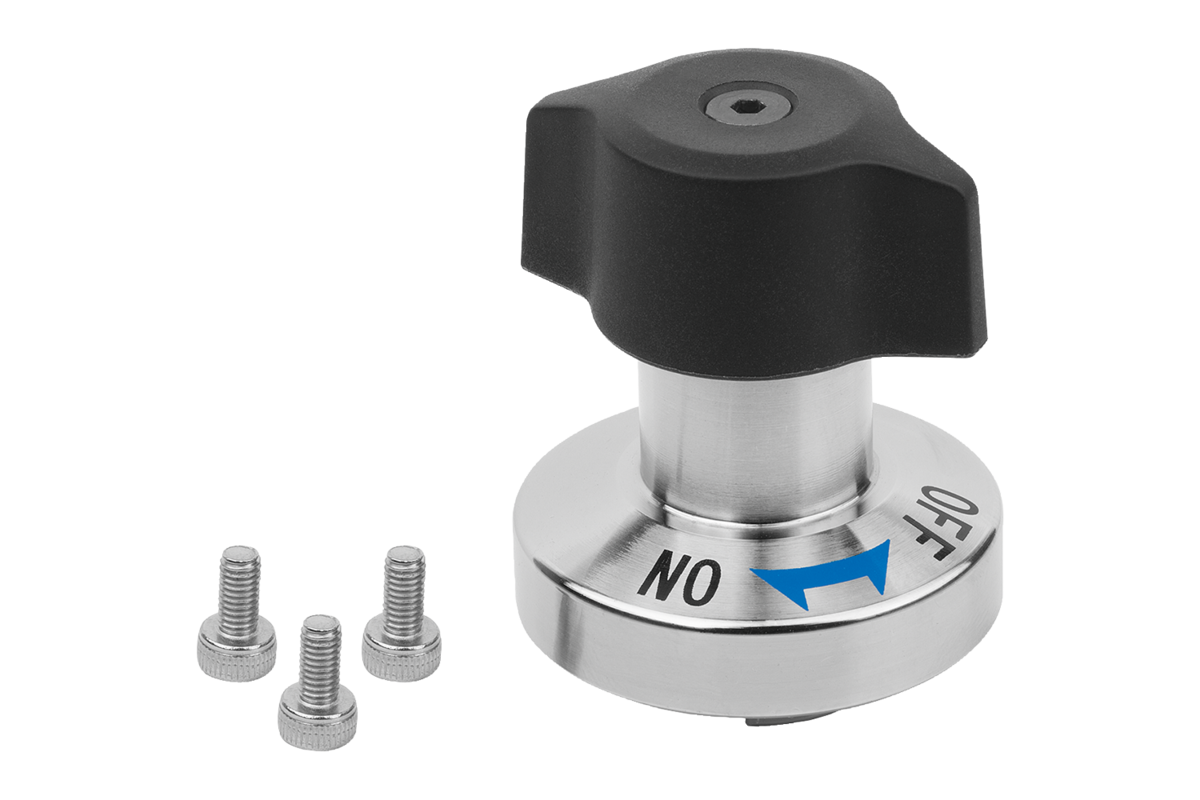

M2 or M3 stainless steel fastening screws are included.
Mounting option 1 for plate thickness 6 mm.
Mounting option 2 for plate thickness >6 to 14 mm.
A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.
Mounting option 1 for plate thickness 6 mm.
Mounting option 2 for plate thickness >6 to 14 mm.
A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.
Method of operation
Check that the rotary knob is in the ”OFF” position and that the pin is retracted.
Push or place the quarter-turn clamp lock over the premounted clamping plate.
Press the rotary knob down and turn to the ”ON” position.
When fully clamped, a click sound is heard.
Push or place the quarter-turn clamp lock over the premounted clamping plate.
Press the rotary knob down and turn to the ”ON” position.
When fully clamped, a click sound is heard.
Drawing reference
1) Mounting option 1
2) Mounting option 2
3) Plate
2) Mounting option 2
3) Plate
Accessory
Clamping plates 05592
