{"product":{"productId":"agid.14734","price":144.36,"name":"Stops adjustable, stainless steel with status sensor"},"currency":"EUR"}
Material
Screw and plunger stainless steel 1.4301.
Guide bush stainless steel 1.4112.
Status sensor stainless steel.
Version
Screw, plunger, guide bush and status sensor bright.
Afficher plus
Afficher moins
Description
Product description

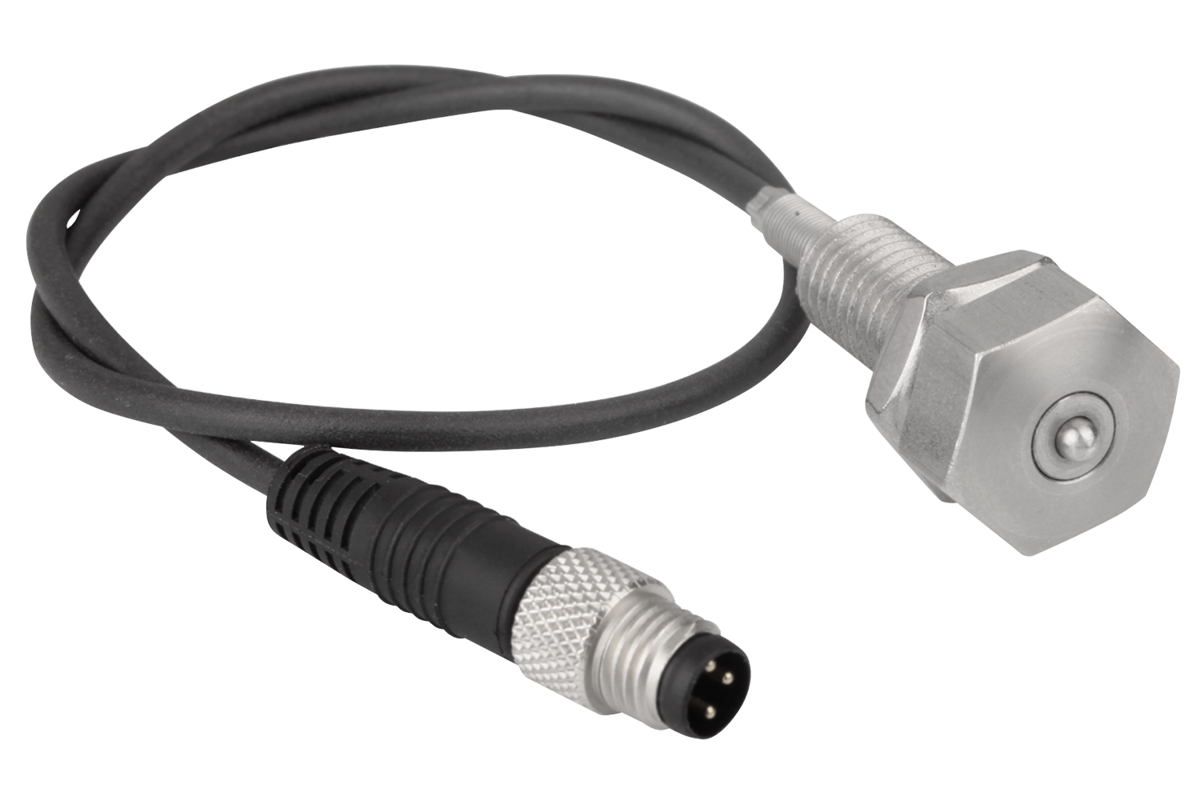

In addition to their mechanical function as a support element, adjustable stops with status sensor are used to detect whether a component is in contact with the stop or not.
The sensor recognises whether the plunger is retracted or extended and enables this status information to be electronically processed.
The sensor recognises whether the plunger is retracted or extended and enables this status information to be electronically processed.
Material
Screw and plunger stainless steel 1.4301.
Guide bush stainless steel 1.4112.
Status sensor stainless steel.
Version
Screw, plunger, guide bush and status sensor bright.
Note
The assured switch distance is achieved when the plunger is flush with the stop face of the guide bush. The sensor is supplied unassembled.
Installation recommendation: Glue in using e.g. Loctite 638.
Cable length: 0.3 metre.
Important: Screw the sensor in as far as it will go!
Installation recommendation: Glue in using e.g. Loctite 638.
Cable length: 0.3 metre.
Important: Screw the sensor in as far as it will go!
Technical Data
Inductive sensor:
Output relay: PNP normally open (NO)
Operating voltage: 10 - 30 V DC
Operating current: 100 mA
Switch gap: 0.8 mm
Switching frequency: 5000 Hz
Short-circuit proof: yes
Reverse polarity protected: yes
IP rating: IP 67
Connection type: 0.3 m cable, PUR, with plug
Temperature range: -25° C - +70°C
Approvals: CE, c-UL-us, UKCA, WEEE
Output relay: PNP normally open (NO)
Operating voltage: 10 - 30 V DC
Operating current: 100 mA
Switch gap: 0.8 mm
Switching frequency: 5000 Hz
Short-circuit proof: yes
Reverse polarity protected: yes
IP rating: IP 67
Connection type: 0.3 m cable, PUR, with plug
Temperature range: -25° C - +70°C
Approvals: CE, c-UL-us, UKCA, WEEE
Application
Stops with status sensors enable status-dependent process control. It can be ensured that a workpiece or moving component is in the desired location before further steps follow.
Assembly
Le capteur d’état doit être vissé jusqu’à la butée.
Il est recommandé de le coller avec de la Loctite 638 par exemple.
Il est recommandé de le coller avec de la Loctite 638 par exemple.
Sécurité
Les butées avec capteurs d’état ne sont pas adaptées à la protection des personnes.
Sécurité
L'utilisation des butées réglables n'est pas destinée à protéger les personnes.
Indication de dessin
1) Vis
2) Poussoir
3) Douille de guidage
4) Capteur d’état
5) Indicateur LED

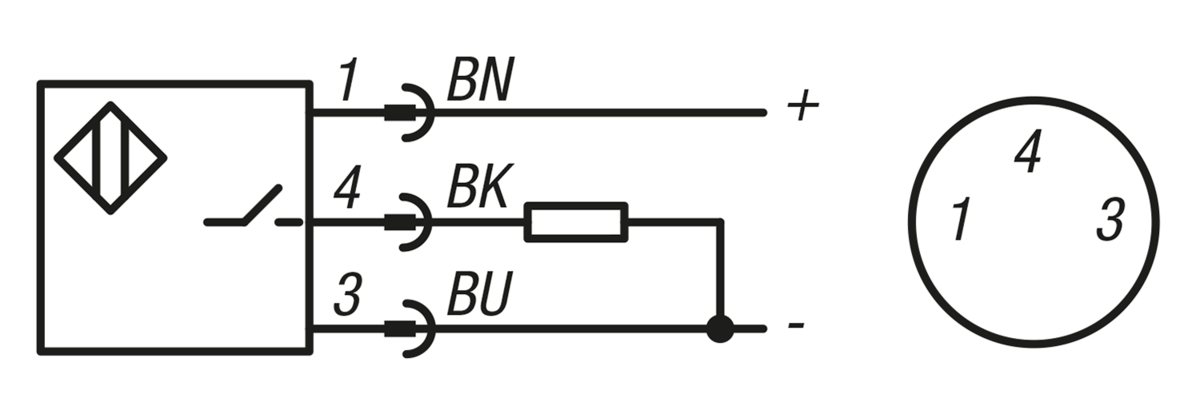

BN = marron
BK = noir
BU = bleu
2) Poussoir
3) Douille de guidage
4) Capteur d’état
5) Indicateur LED
BN = marron
BK = noir
BU = bleu
Accessoire
Connecteur M8x1 à douille avec verrouillage à vis non blindé 80150.
Remarque importante concernant le téléchargement des modèles CAO
Pour pouvoir télécharger nos modèles CAO, vous devez d’abord connecter. Si vous n’avez pas encore créé de compte, inscrivez-vous en cliquant sur « Mon compte » (à droite de l’écran) et suivez les instructions.
