Material
Stainless steel 1.4034.
Version
Bright.
Hardened 52 HRC.
Hardened 52 HRC.
Show more
Show less
Description
Material
Stainless steel 1.4034.
Version
Bright.
Hardened 52 HRC.
Hardened 52 HRC.
Note

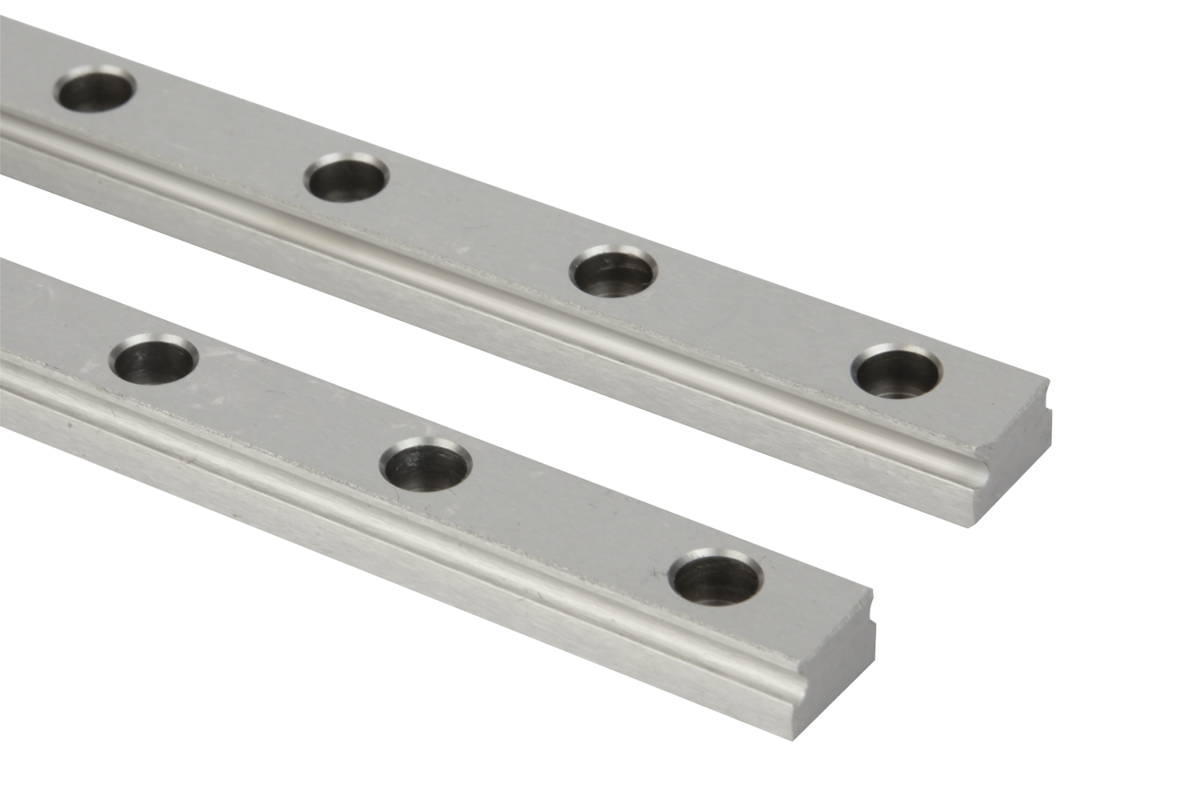

Profile guide rails can be screwed on from above. The profile rails, on which one or more carriages can be mounted, are available in four miniature sizes.
4-point ball bearing system with identical load angles and 2 ball bearings per carriage. Thus loads can be uniformly absorbed from all sides.
Max. acceleration: 80 m/s².
Maximum traversing speed 3 m/s.
Application temperature -20 °C to +80 °C.
Combination of the rails is possible.
4-point ball bearing system with identical load angles and 2 ball bearings per carriage. Thus loads can be uniformly absorbed from all sides.
Max. acceleration: 80 m/s².
Maximum traversing speed 3 m/s.
Application temperature -20 °C to +80 °C.
Combination of the rails is possible.
Important note on downloading CAD models
In order to download our CAD models, you must log in first. If you have not created an account yet, please register under "My Account" (right side of the screen) and follow the instructions.
