Material
Stainless steel 1.4301.
Version
Bright.
Afficher plus
Afficher moins
Description
Material
Stainless steel 1.4301.
Version
Bright.
Note

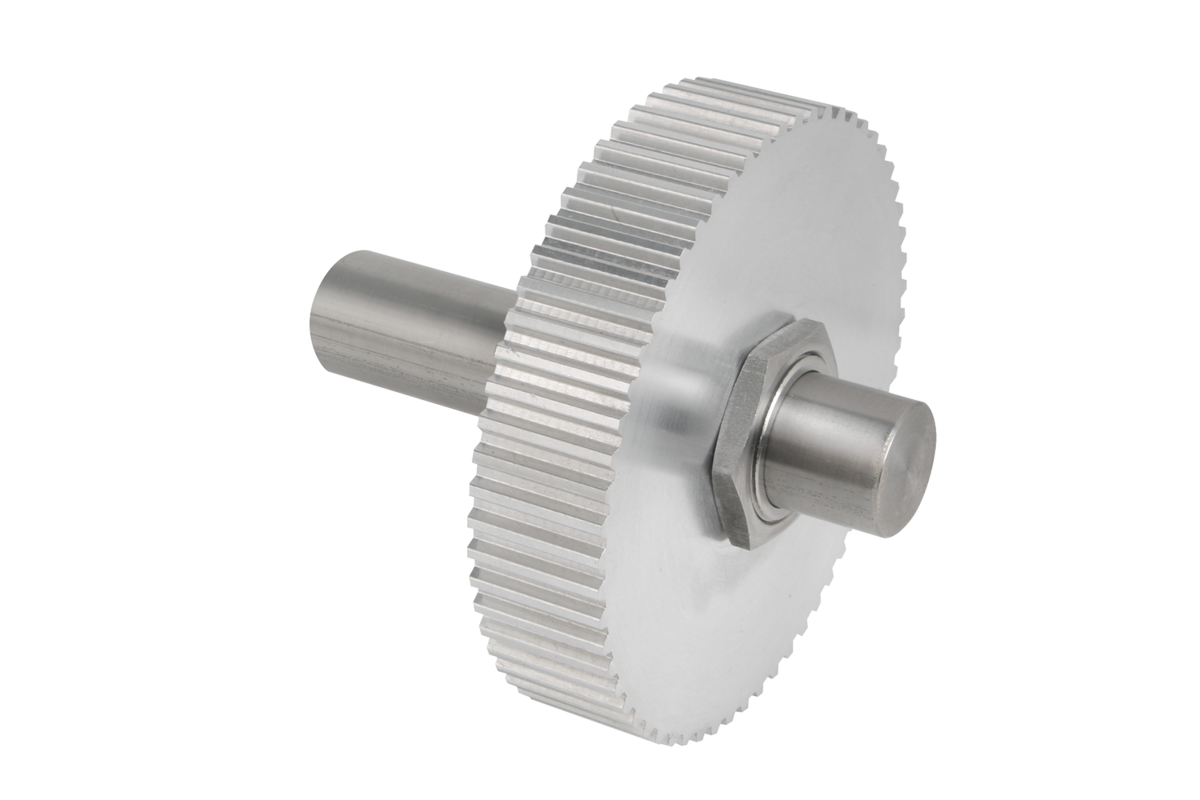

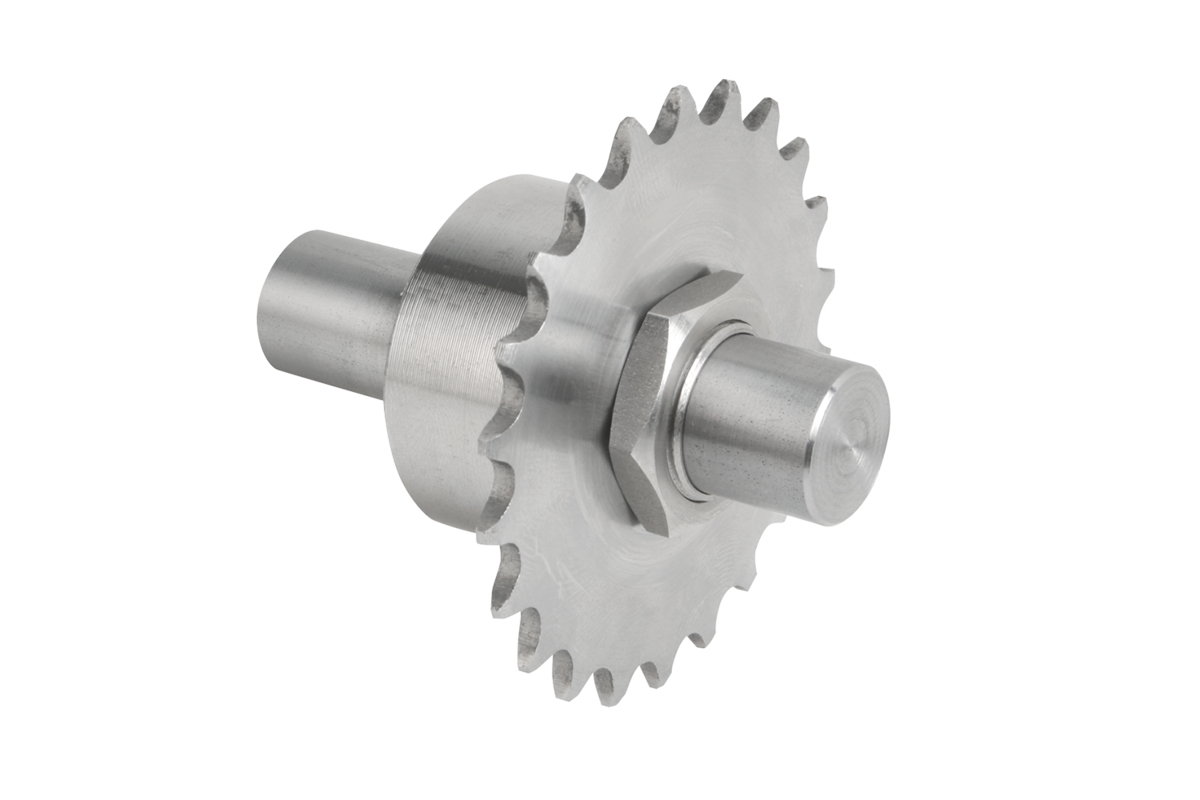

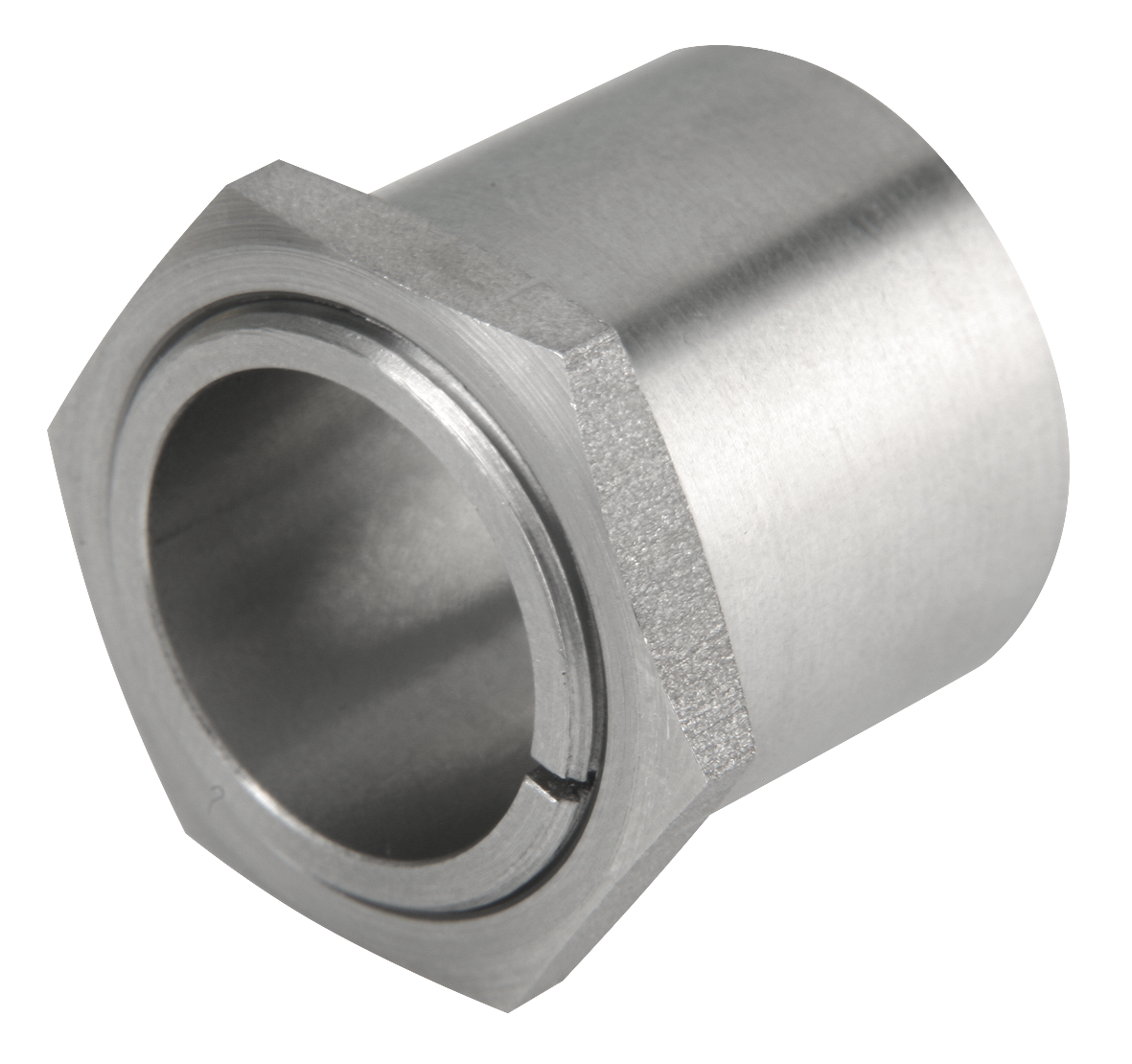

Self-centring and play-free shaft/hub clamping sets with a very low moment of inertia and minimal space requirement. The clamping sets produce a friction connection between shaft and hub. Central nut for quick mounting. After the nut is loosened, the set can be removed with a puller tool.
Clamping set concentricity ±0.01 mm.
Clamping set concentricity ±0.01 mm.
Assembly
To achieve the specified torque, the clamping set must be installed grease-free. The entire length of the clamping set must be in contact with the shaft. For maximum torque the shaft and hub must be sufficiently firm (min. yield strength 350 N/mm²).
Required tolerances:
Shaft: h7
Hub: H7
Required tolerances:
Shaft: h7
Hub: H7
