        Attachment jaws machinable for fixed jaws DS and ES

Item description/product images

DescriptionMaterial:Tool steel.Version:tempered (HRC32).Note:Attachment jaws are used to incorporate customer-specific workpiece contours.Application:The attachment jaws are screwed onto the ES and DS fixed stops.Advantages:Machined attachment jaws can be re-used for later series productions.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 41505-02 Attachment jaws machinable for fixed jaws DS and ES

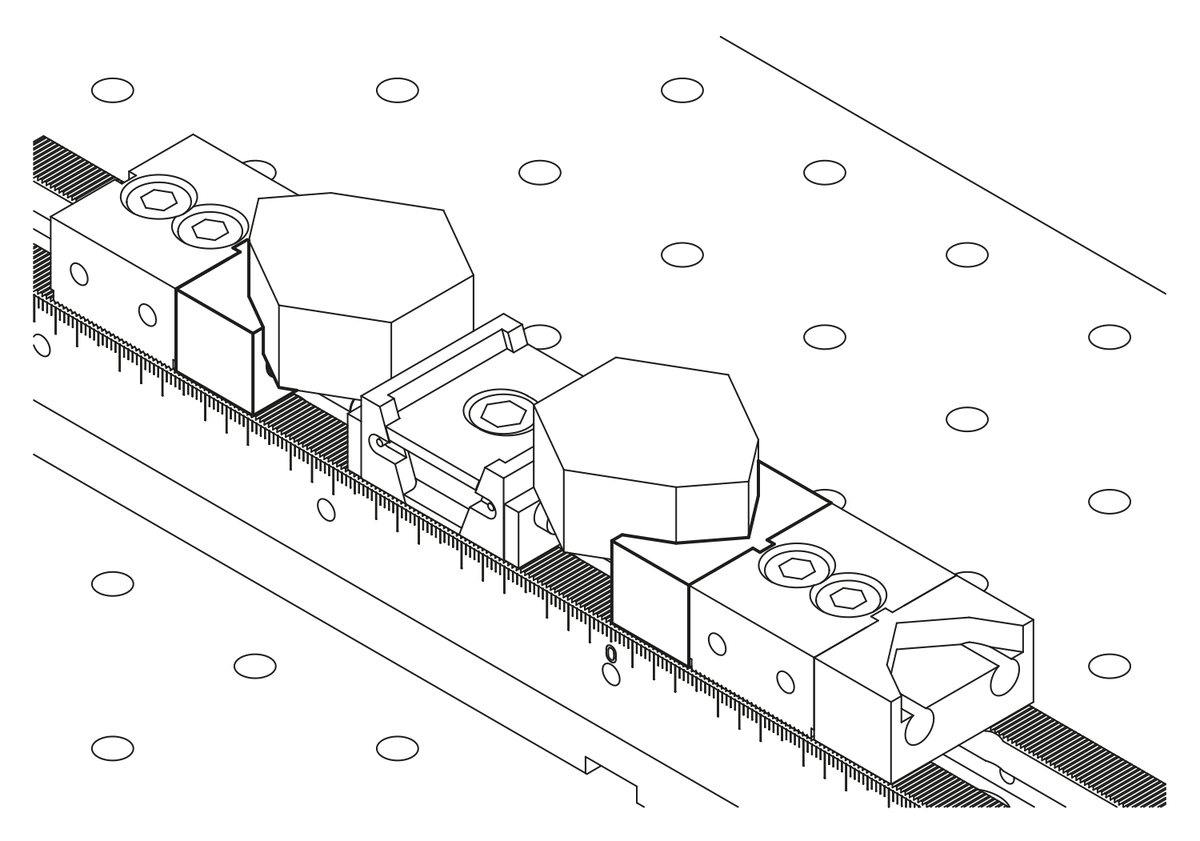

Drawings

Attachment jaws machinable for fixed jaws DS and ES

Item selection/filter

Order No.	suitable for system width	L	B	H	B1	B2	D1 for screw to DIN 912	CAD	Acc.	Price	Order
41505-02-05017	50	17	50	25	30	5	M5			37.44 €
41505-02-05027	50	27	80	25	30	5	M5			46.80 €
