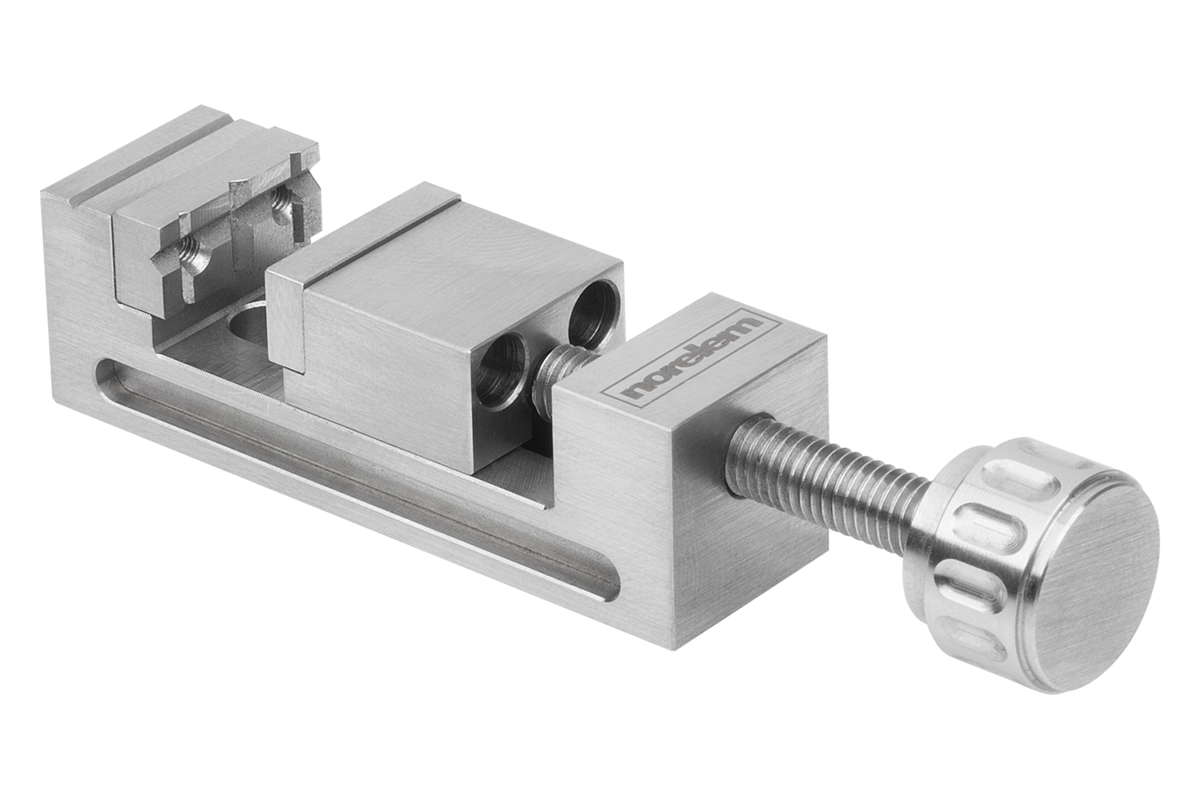

Precision vices stainless steel, aluminium or brass, mini
33225-10

Precision vices stainless steel, aluminium or brass, mini

go back

Item description/product images

DescriptionMaterial:Precision vice: stainless steel, aluminium or brass.
Jaw plates: stainless steel or plastic
Version:Aluminium matt anodised
Brass matt chromed.

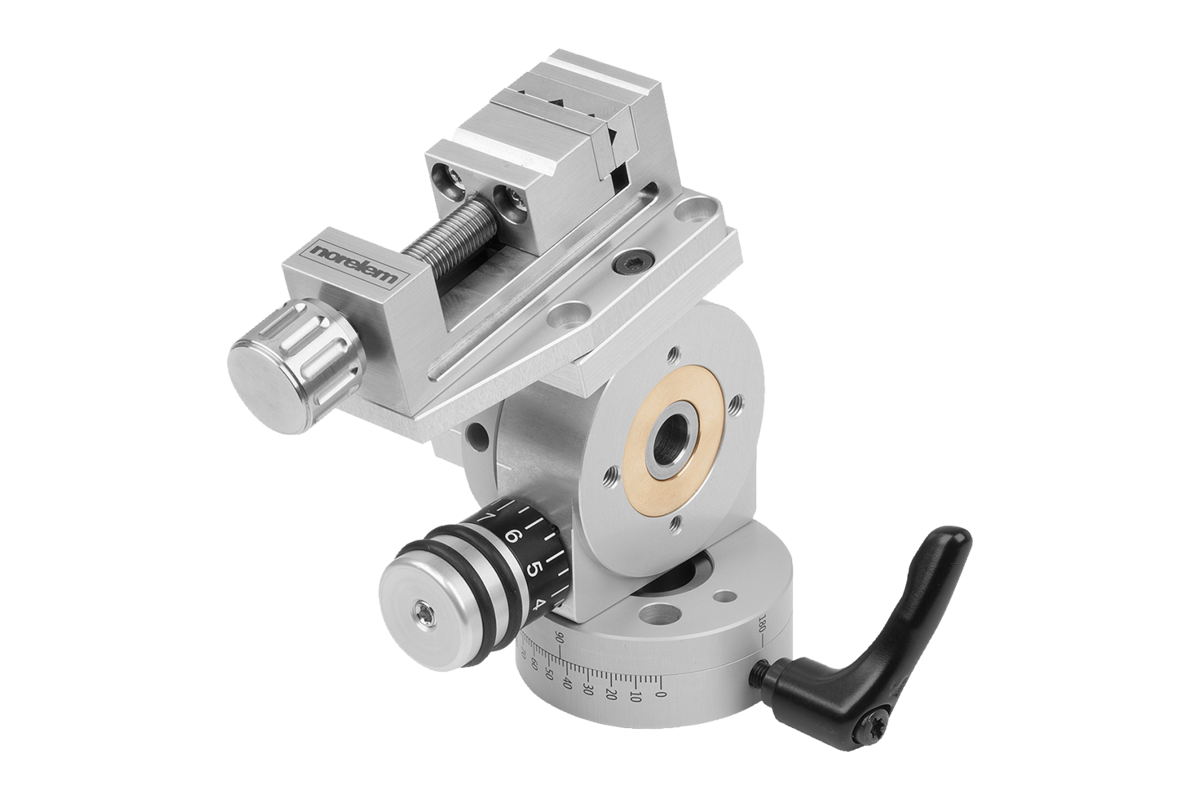

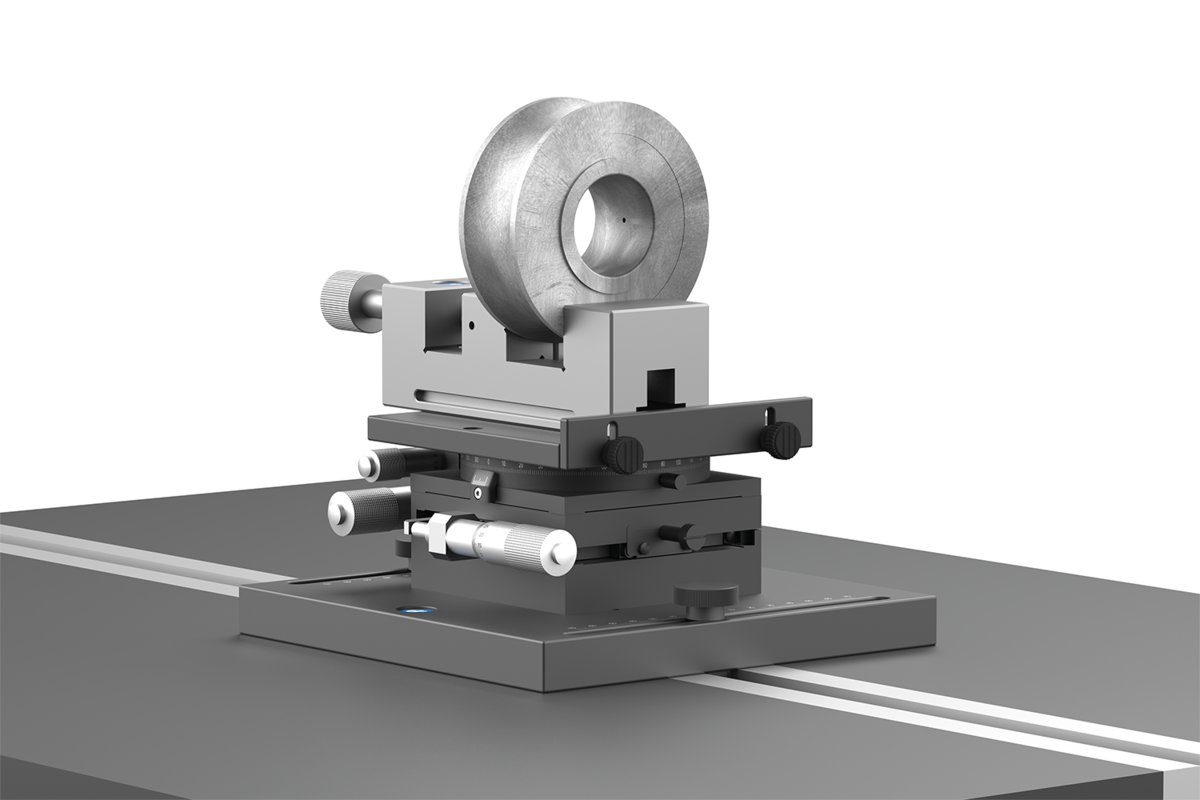

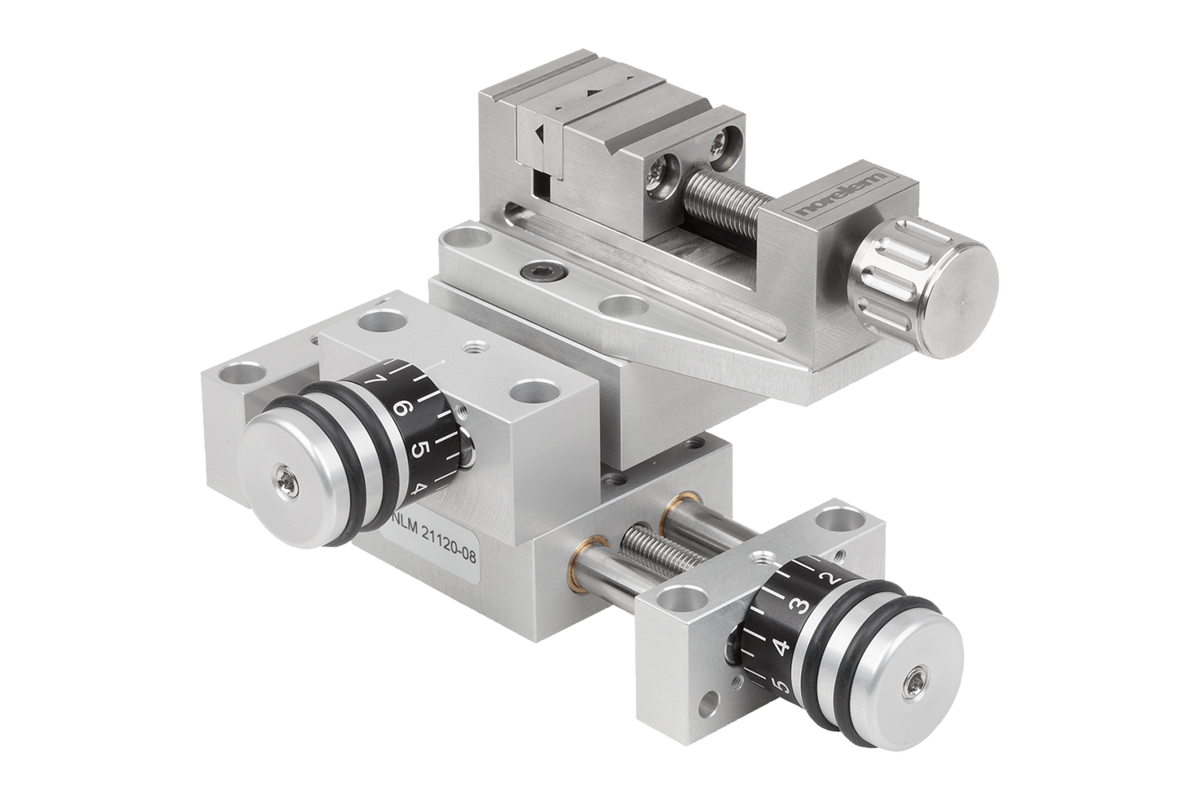

Note:The precision vices in miniature design are a flexible solution to position and hold workpieces in measuring systems, microscopes, profile projectors etc. Ideal for clamping, measuring and machining small parts.

The jaw plates have prisms which enable cylindrical components to be easily and accurately clamped.

The stainless steel and plastic jaw plates have a parallel precision of 0.02 mm and an angular accuracy of 0.04 mm.

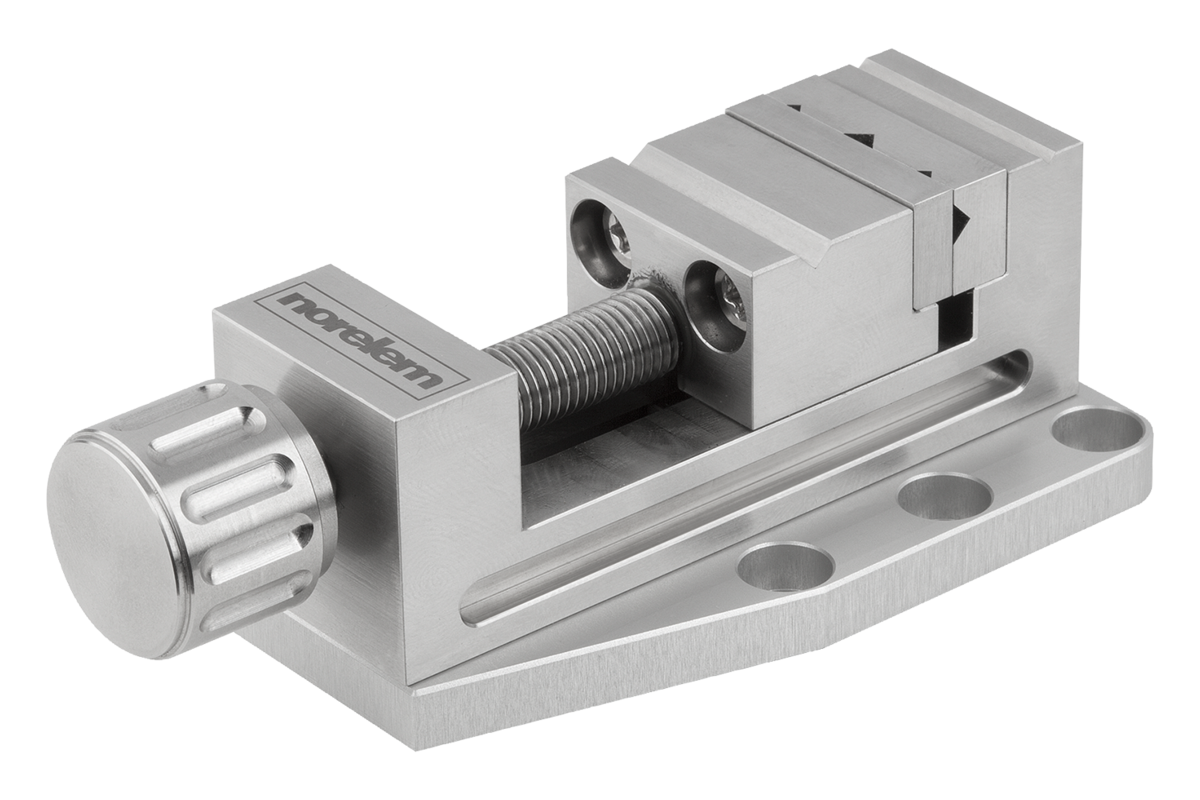

Accessory:Jaw plates 33225-15 and mounting plates 33225-16.Supplied with1x precision vice.
2x stainless steel jaw plates
2x plastic jaw plates (33225-10-15142, 33225-10-25231 and 33225-10-35321).
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 33225-10 Precision vices stainless steel, aluminium or brass, mini 593 kB

Drawings

Precision vices stainless steel, aluminium or brass, mini

Item selection/filter

Order No.FormMain
material
Steel
code
Surface finish
body
Travel
S
B

B1B2B3DD1D2D3D4CADAcc.PriceOrder
33225-10-15142Abrass-matt chromed14151,7-8,513,5M04X5--M02 120.75 €
33225-10-15140Astainless steel1.4021-14151,7-8,513,5M04X5--M02 178.25 €
33225-10-25231Baluminium-matt anodised2325312,51519,7M04X7M04X5M05X8M4 171.35 €
33225-10-25230Bstainless steel1.4021-2325312,51519,7M04X7M04X5M05X8M4 299.00 €
33225-10-35321Baluminium-matt anodised3235317,52127,6M05X10M05x10M06X10M5 218.50 €
33225-10-35320Bstainless steel1.4021-3235317,52127,6M05X10M05x10M06X10M5 345.00 €
Order No.H

H1H2H3H4H5H6LL1L2L3L4L5L6L7CADAcc.PriceOrder
33225-10-15142158,531,8-6,33,35066,5-80,5424395,534 120.75 €
33225-10-15140158,531,8-6,33,35066,5-80,5424395,534 178.25 €
33225-10-25231251543910,357593,5-116,562,56,255984,56,2 171.35 €
33225-10-25230251543910,357593,5-116,562,56,255984,56,2 299.00 €
33225-10-3532135214312,614,47100125-157838,55920,568,2 218.50 €
33225-10-3532035214312,614,47100125-157838,55920,568,2 345.00 €
