Item description/product images

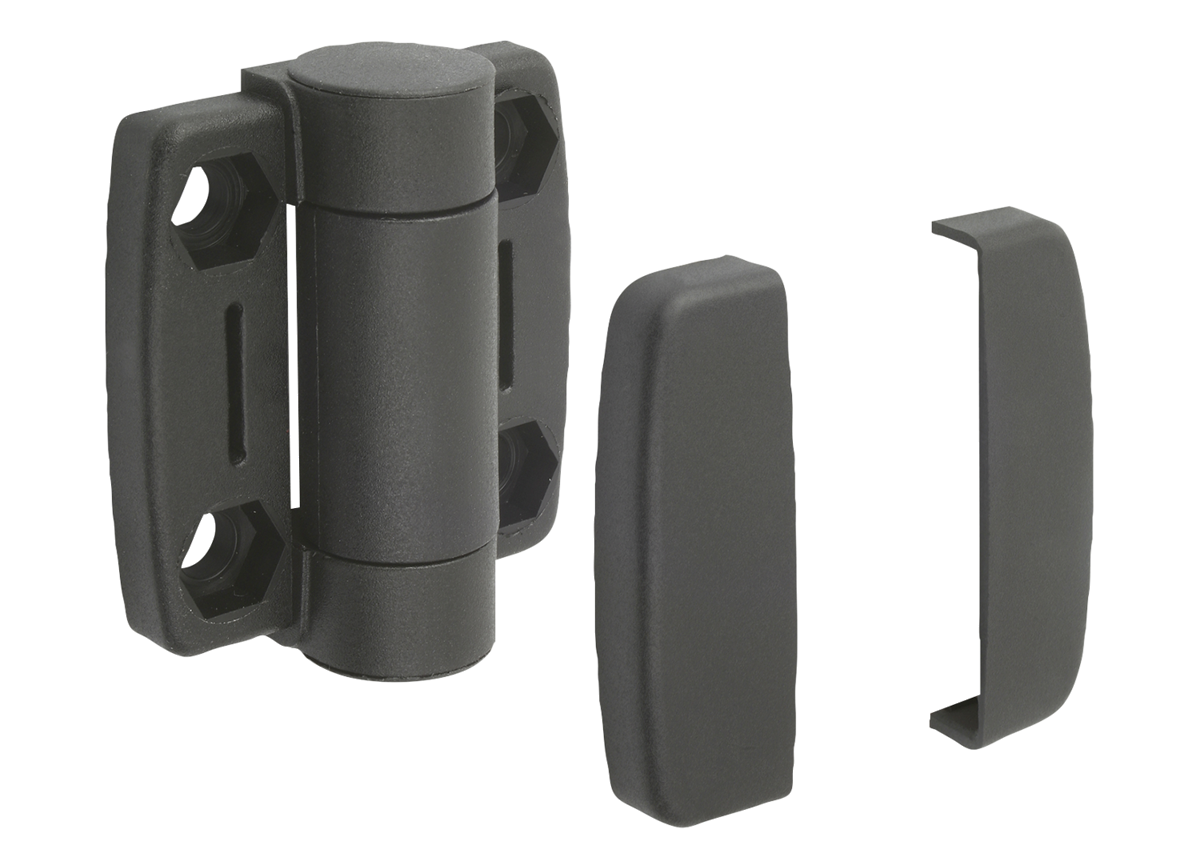

DescriptionMaterial:Hinge and caps, fibreglass reinforced PA thermoplastic.
Metal parts stainless steel.
Version:Hinge and caps black.
Metal parts bright.
Note:The tabs locate the hinge in the slot and prevent twisting.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 27858 Hinges plastic, with adjustable friction 215 kB
 Technical information for hinges 360 kB

Drawings

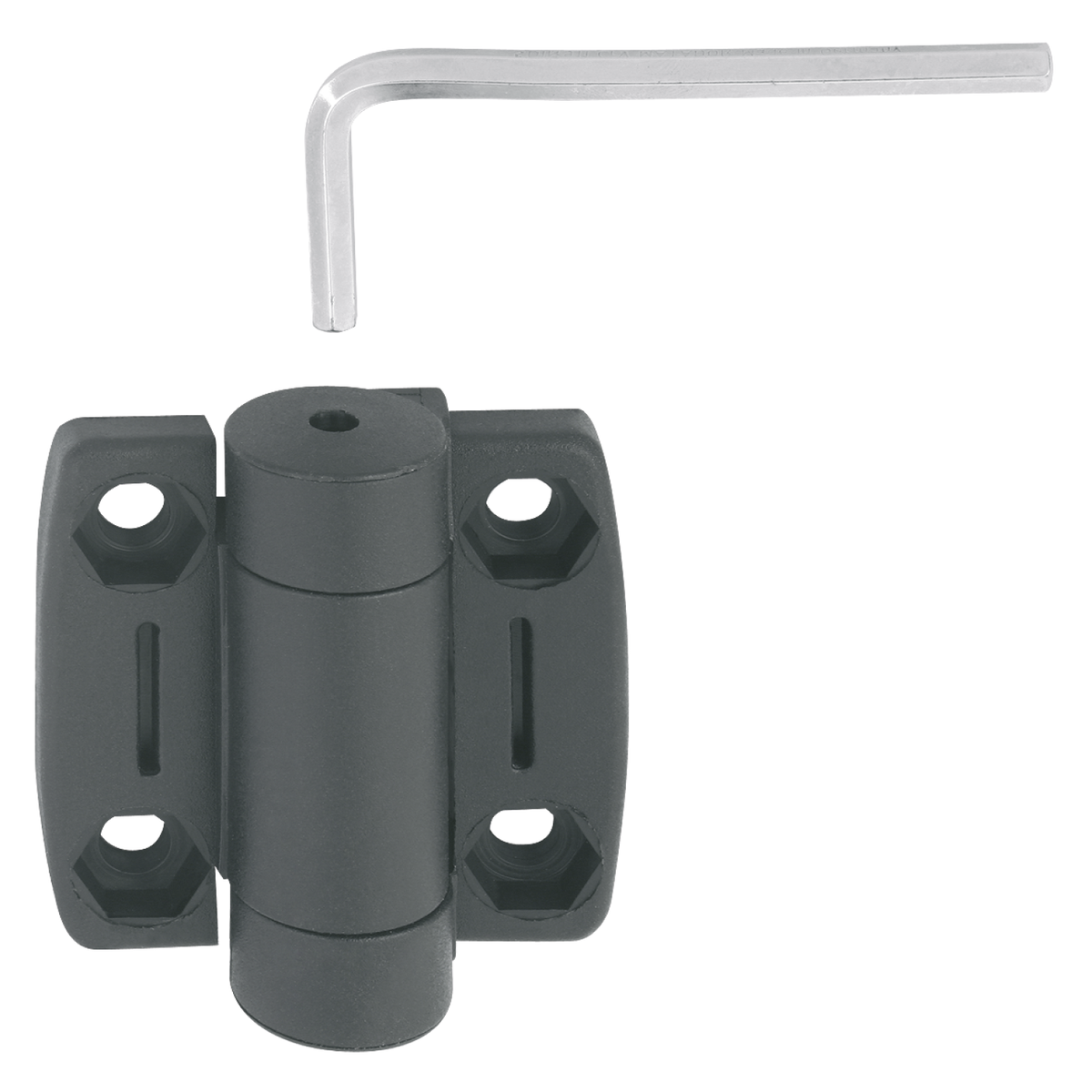

Hinges plastic, with adjustable friction

Item selection/filter

Order No.

AA1A2A3A4BGuide tabs
for slot
F1 max.
kN
F2 max.
kN
Max.
torque
Nm
CADAcc.PriceOrder
27858-561818005417,7517,75272756-0,40,325- 11.74 €
27858-561818065417,7517,7527275660,40,325- 11.71 €
27858-561818085417,7517,7527275680,40,325- 11.68 €
27858-5623230073,522,7522,7536,7536,7556-0,60,425- 12.86 €
27858-5623230873,522,7522,7536,7536,755680,60,425- 12.79 €
27858-5623231073,522,7522,7536,7536,7556100,60,425- 12.83 €
