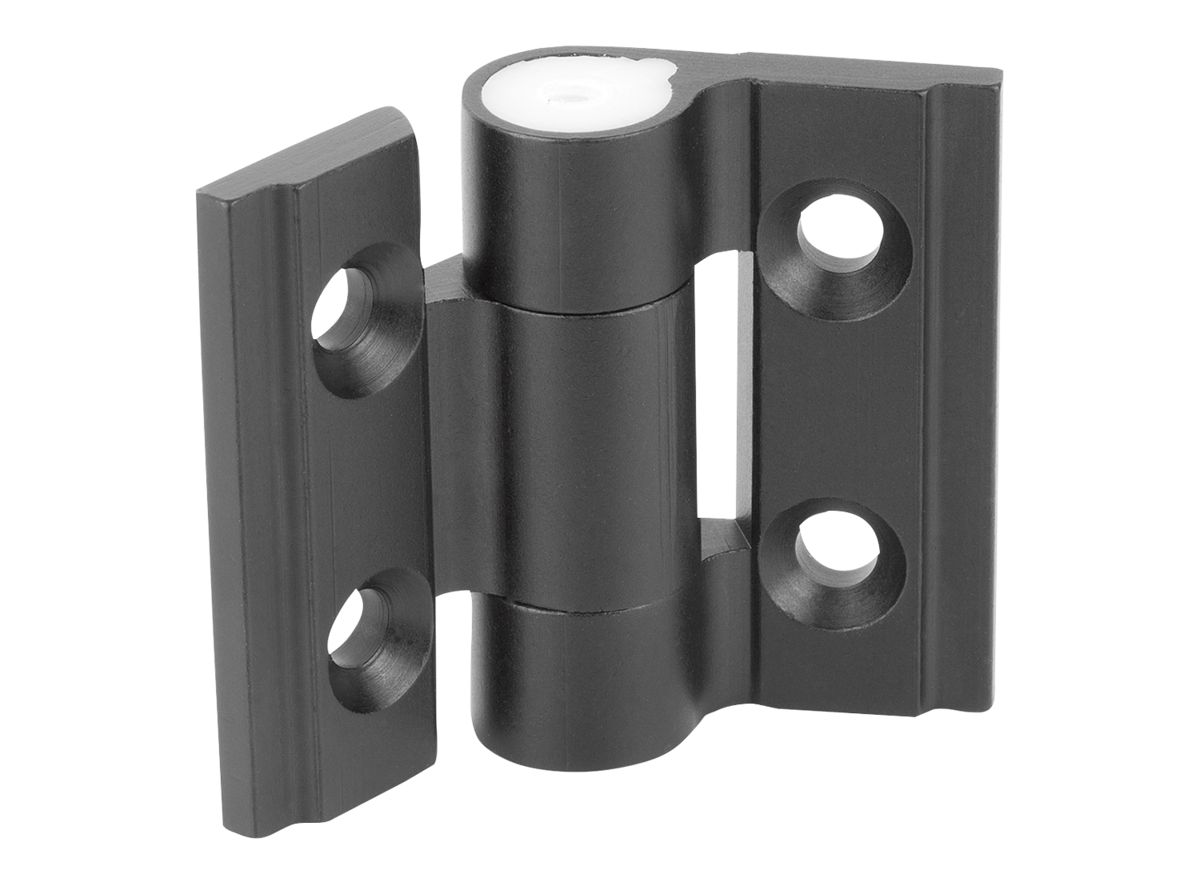

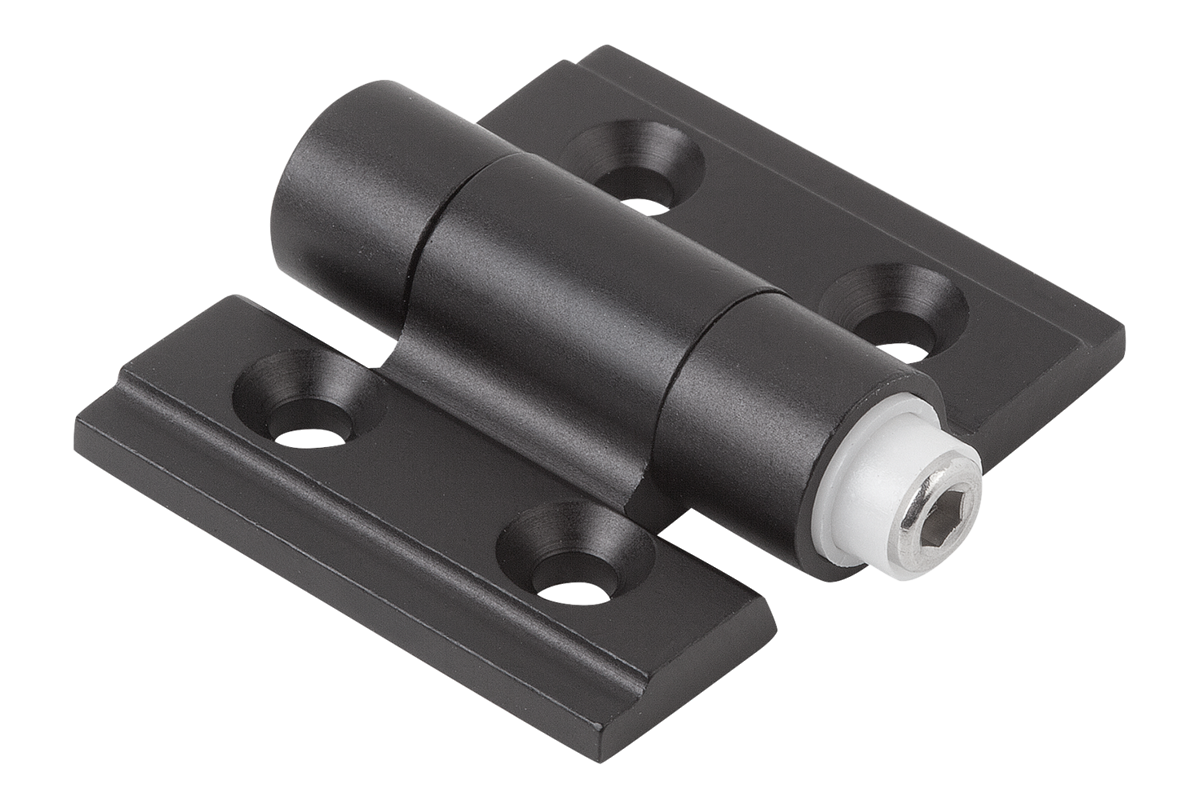

Hinge
with adjustable friction
aluminium
black anodised
- Connect two fixed components flexibly to each other
- Application sectors: machine construction, furniture construction, doors, hatches, hoods
- Door can be positioned at any desired angle
- The frictional resistance (0-1 Nm) to be infinitely adjusted with the setscrew
- Maximum tensile strength 2240 N, shearing resistance 1050 N
13,25 €
plus sales tax
norelem.product.details.availability.details.offline
Added to your shopping cart
Designation
Hinge
Version 1
with adjustable friction
Product type
hinge with adjustable friction
Body material
aluminium
Body colour
black anodised
A=Length
35
B=Width
30
A1
21
B1
15
D
3,5
D1
10
F1 (N)
2460
F2 (N)
1480
Fastening type
fastening holes
S
3,3
Description
Material
Aluminium 6060 T5.
End caps PA 6.6.
Washers POM.
End caps PA 6.6.
Washers POM.
Version
Black anodised
Note
These torque hinges enable doors to remain open in any position. A set screw enables the amount of friction to be infinitely adjusted between 0-1 Nm.
Opening angle 270°.
Max. tensile strength: 2240 N
Max. shear strength: 1050 N
Fastened using DIN 7991 countersunk screws.
The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.
These load values were determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.
Different materials onto which the hinges are installed and the type of mounting, weather conditions and wear can influence the determined values.
Opening angle 270°.
Max. tensile strength: 2240 N
Max. shear strength: 1050 N
Fastened using DIN 7991 countersunk screws.
The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.
These load values were determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.
Different materials onto which the hinges are installed and the type of mounting, weather conditions and wear can influence the determined values.
Temperature range
From -20°C to +80°C
