{"product":{"productId":"agid.22618","price":4074.94,"name":"Tombstone, grey cast iron, double-sided, for interchangeable subplates"},"currency":"EUR"}
Material
GJL 300.
Version
Support and mounting surfaces precision machined
Show more
Show less
Description
Material
GJL 300.
Version
Support and mounting surfaces precision machined
Note
Interchangeable subplates can be positioned and mounted on both sides of the tombstone. This means that clamping fixtures can be replaced efficiently. The tombstones conform to machine tables for machine tools acc. to DIN 55201 and JIS6337-1980. Please order locating pins for positioning tombstones on machine tables acc. to DIN 55201 separately.
Ring bolts for hoisting are supplied, as well as 2 positioning pins for positioning the interchangeable subplates.
Ring bolts for hoisting are supplied, as well as 2 positioning pins for positioning the interchangeable subplates.
Drawing reference

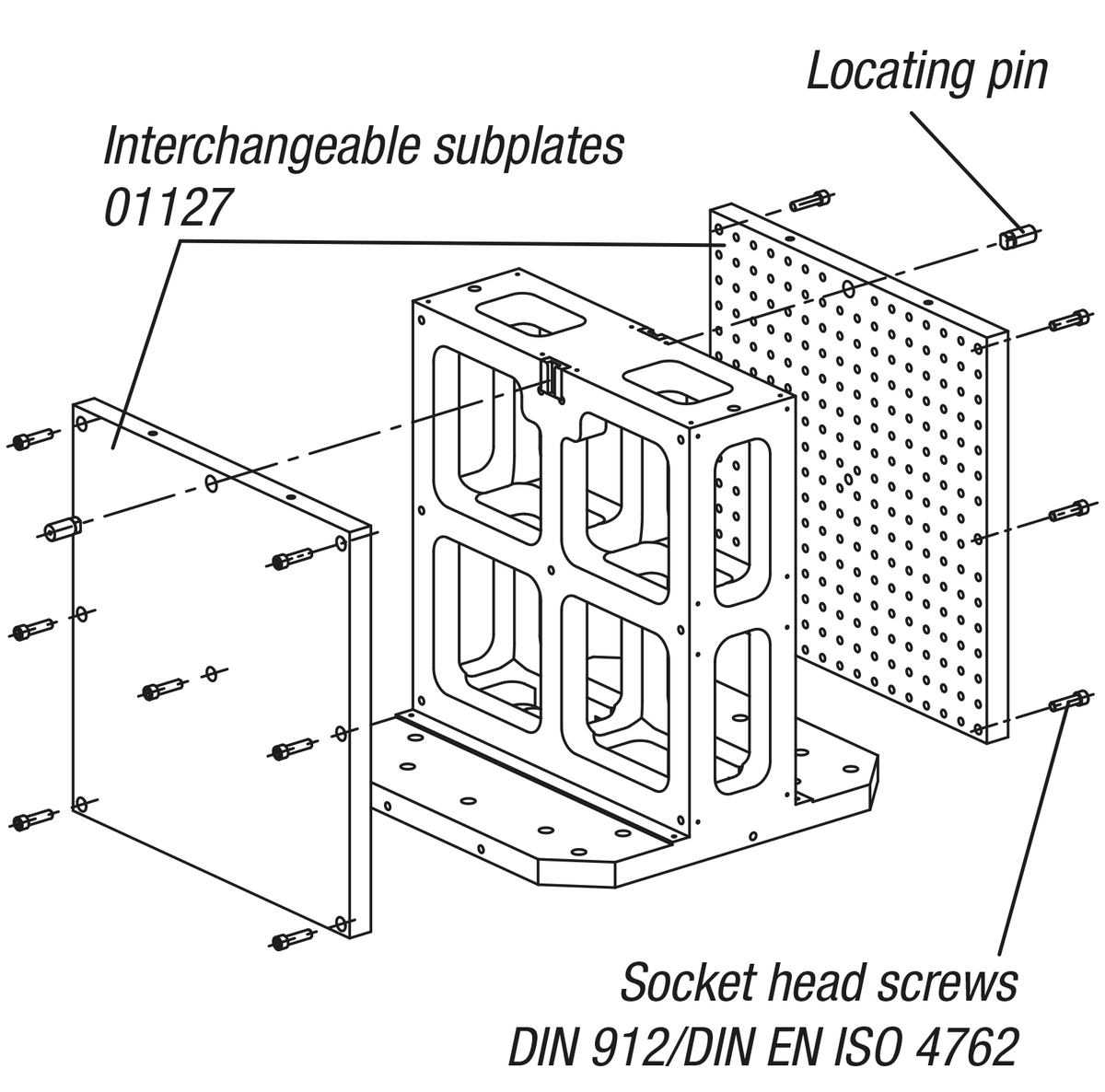

1) hole for DIN 912 cap screw
Important note on downloading CAD models
In order to download our CAD models, you must log in first. If you have not created an account yet, please register under "My Account" (right side of the screen) and follow the instructions.
