Material
Plates aluminium.
Rollers ball-bearing steel.
Sealings NBR.
Rollers ball-bearing steel.
Sealings NBR.
Version
Plates bright and anodised.
Show more
Show less
Description
Material
Plates aluminium.
Rollers ball-bearing steel.
Sealings NBR.
Rollers ball-bearing steel.
Sealings NBR.
Version
Plates bright and anodised.
Note

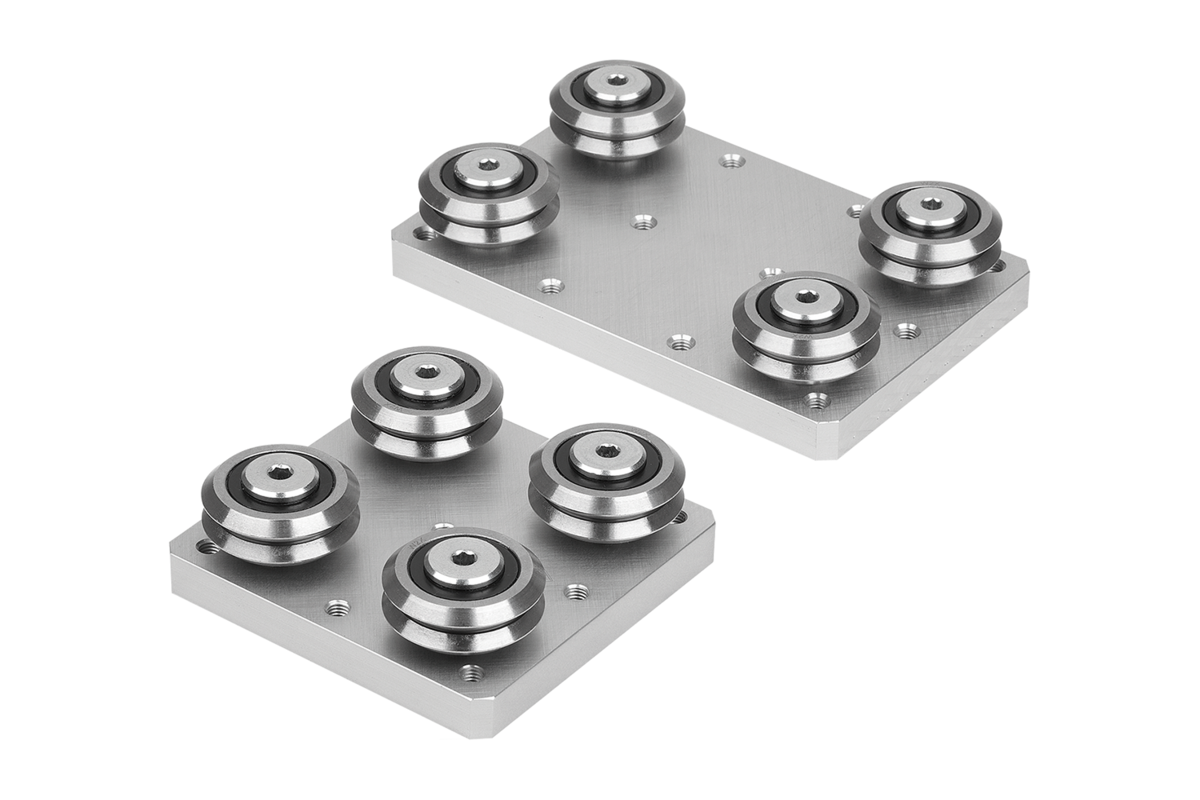

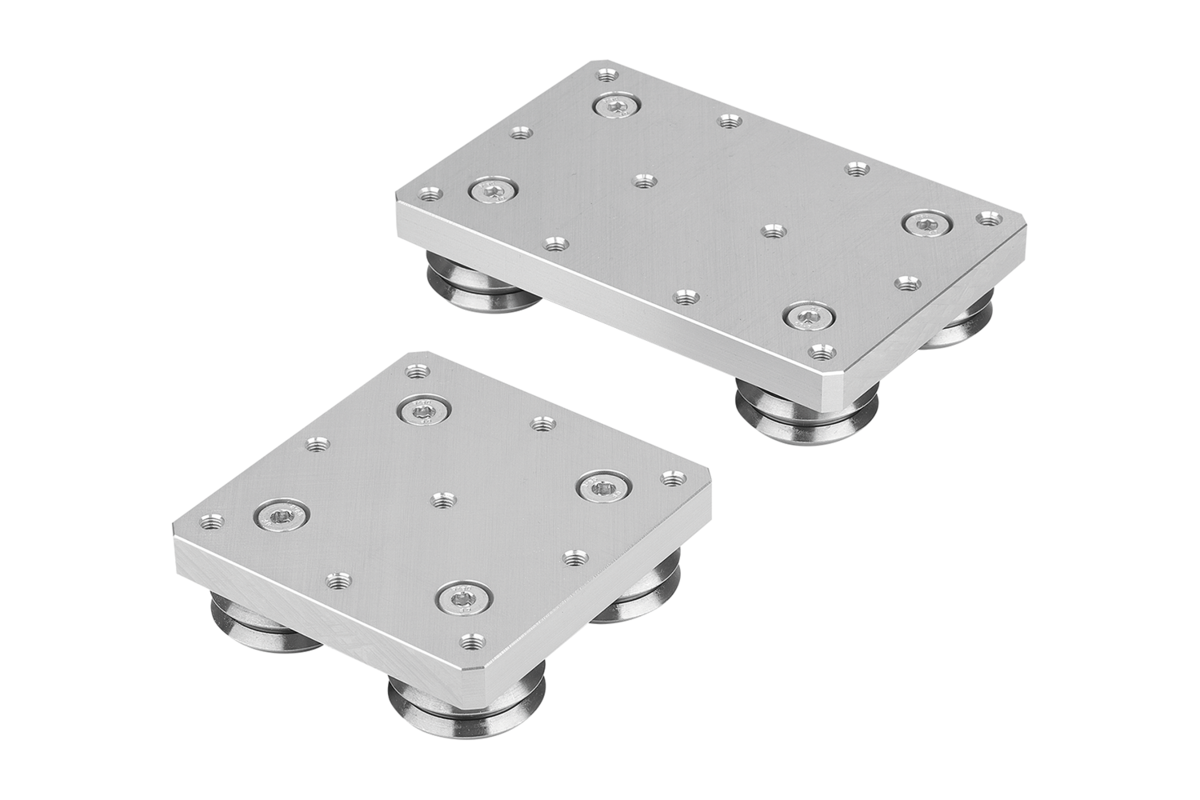

Roller carriage for straight linear guide rails.
The rollers are fitted with an O-ring, resulting in a tolerance of -0.5 mm for H1.
This ensures that the roller guide carriage runs smoothly.
Other items that match this system:
Straight linear guide rails 21355.
The rollers are fitted with an O-ring, resulting in a tolerance of -0.5 mm for H1.
This ensures that the roller guide carriage runs smoothly.
Other items that match this system:
Straight linear guide rails 21355.
Technical Data
Max. acceleration: 50 m/s².
Max. traversing speed: 5 m/s.
Max. traversing speed: 5 m/s.
Temperature range
-10°C to +70°C.
