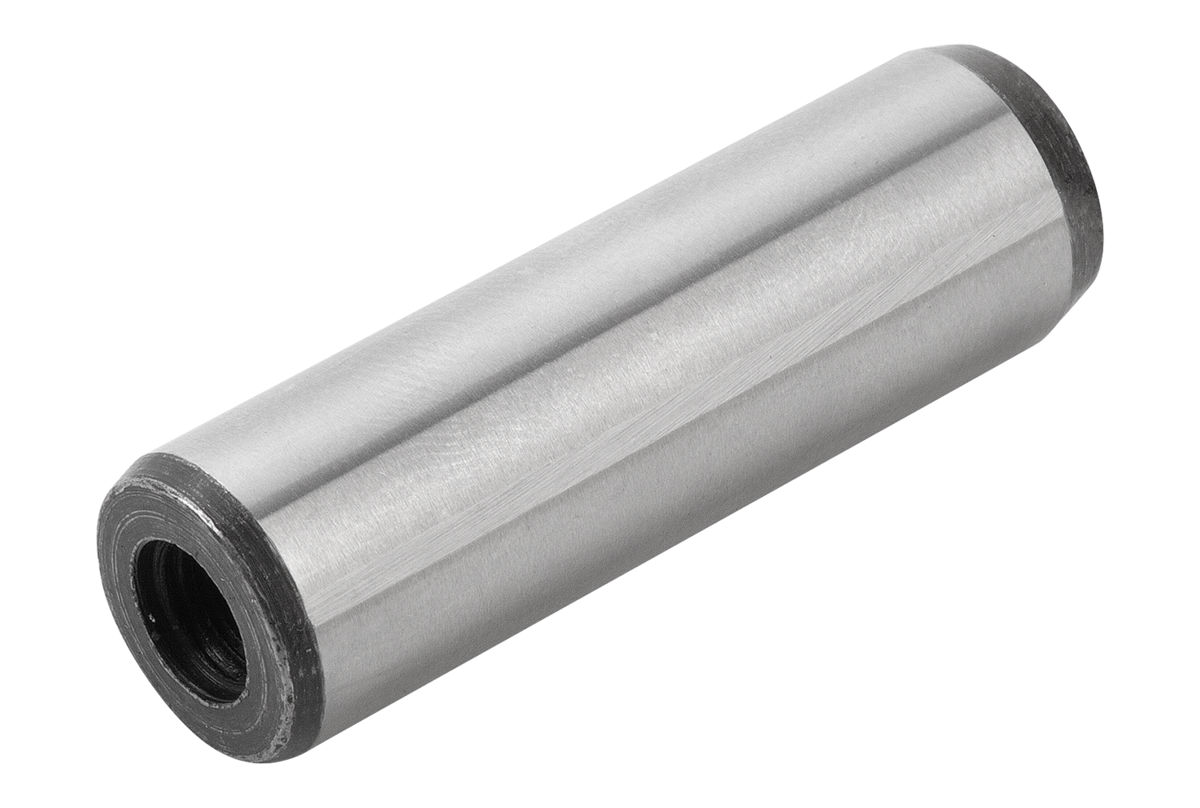

Dowel pin
internal thread
tool steel
surface hardened
- For connecting and positioning workpieces one under the other
- Hardened and ground
- Easily removable
Sales unit
1,10 €
plus sales tax
norelem.product.details.availability.details.offline
Added to your shopping cart
Item
Dowel pin
Version 1
internal thread
DIN EN ISO
DIN EN ISO 8735
Main
material
tool steel
Surface finish
body
surface hardened
D1=Thread
M4
D=diameter
6
L=Length
18
L1 ca.
0,8
L2 ca.
2,1
RoHS
true
T
6
Description
Material
Tool steel 1.2067
Version
Case hardened, hardness 60 ±2 HRC.
Annealed, ground and lapped.
Annealed, ground and lapped.
Note
Tapped cylindrical pins are chiefly used in blind holes. The milled flat prevents air compression in blind holes. The tapping makes it possible to use the extractor 03328.
Drawing reference
1) ground flat
