Designation

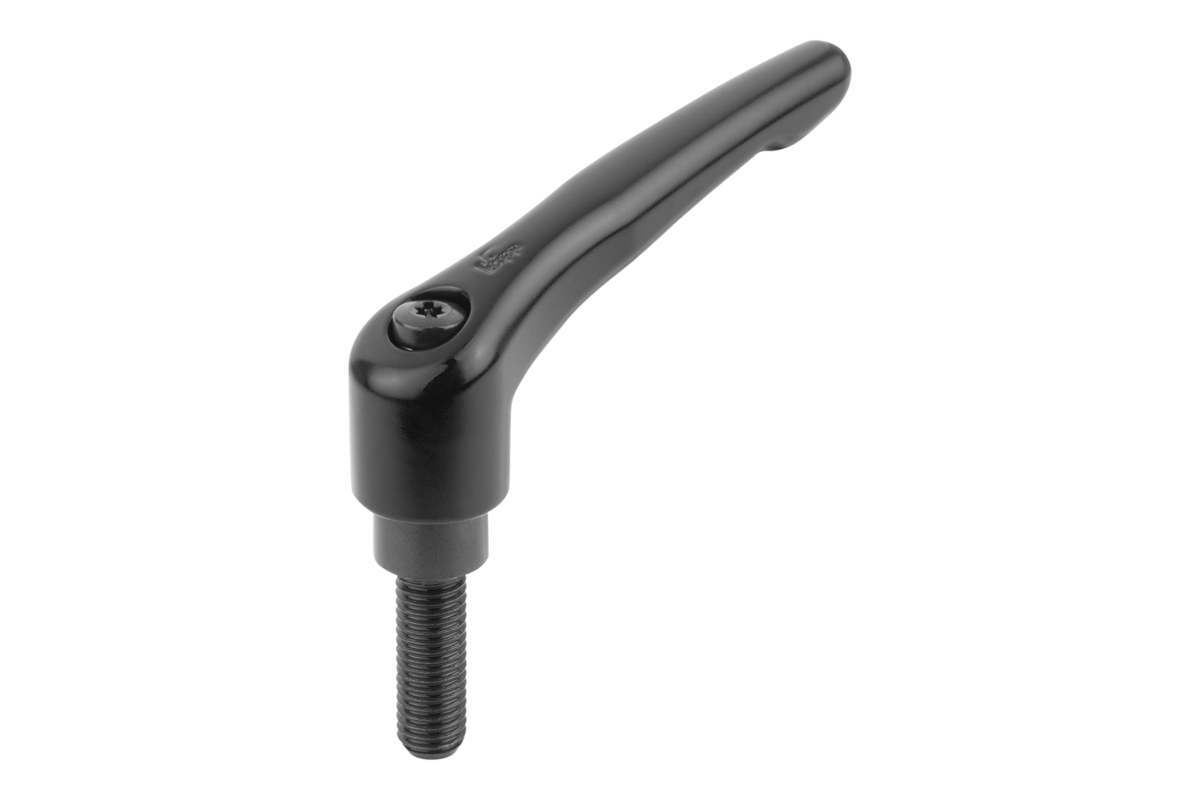

Clamping Lever
Thread type
external thread
Size
0
Body material
zinc
Component material
steel
Body colour
jet black RAL 9005
Body surface finish
satin finish
Component surface finish
black oxidised
A1=Handle length
37
A=Handle length
30
H3=Handle height
30
L=Thread length
50
N=No. of teeth
16
X=Thread
M4
B
7
D
10
D1
13
D2
14
H
24,5
H1
4
H2
14,5
H4
33

Description

Material
Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.
Version
Handle powder-coated.
Steel parts black oxidised.
Note
Where L ≥ 60 mm the thread length is always 60 mm.
On request
Other threads, screw lengths, colours and special versions.
Dimension “H1” available in other lengths at extra charge.
Drawing reference
1) flat point DIN EN ISO 4753
