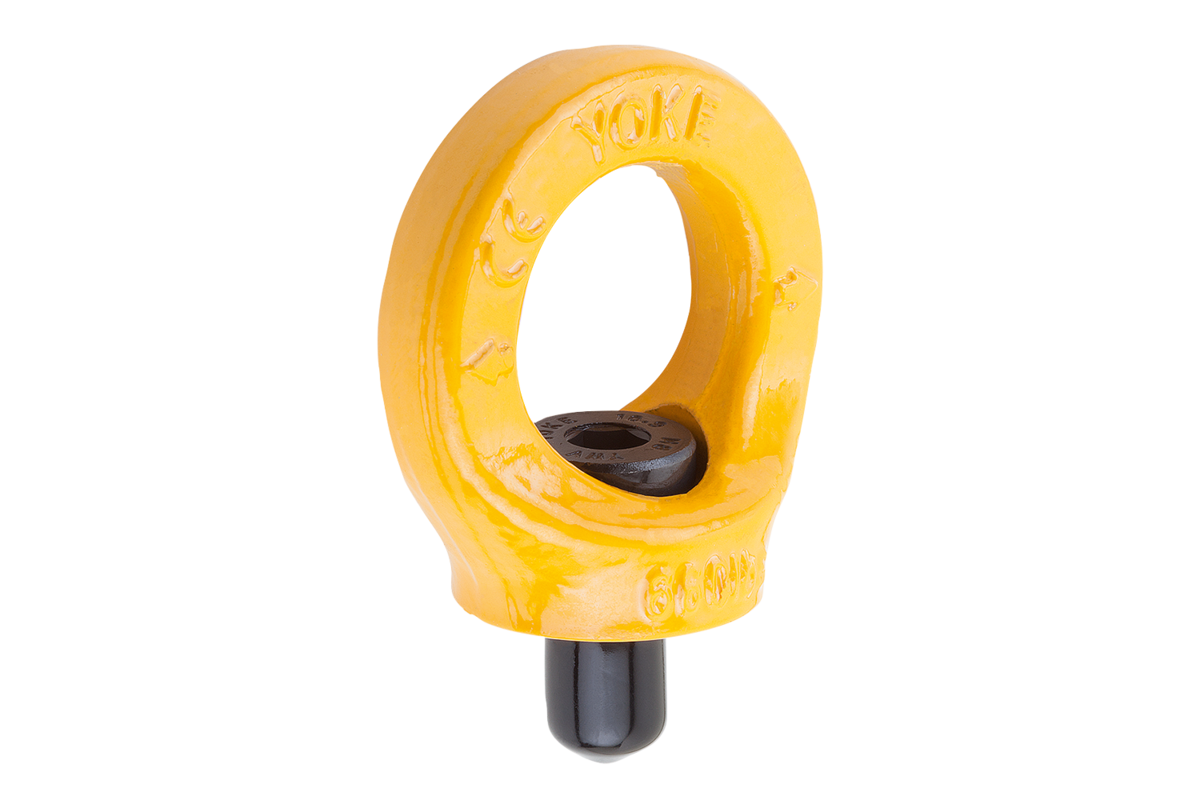

DescriptionMaterial:Ring 1.6541 steel.
Screw steel.
Version:Ring forged and high tensile tempered.
100% electromagnetic crack tested per EN 1677-1, 4x safety factor.
Plastic-coated.
Thread grade 10.9.
Note:In contrast to DIN 580 ring bolts this ring bolt is rotatable, therefore the load direction is adjustable and unintended tightening or loosening is negated.

– 4x safety factor
– lateral loading up to 90° is possible
– ring can rotate 360° with tightened screw

The listed load values apply for a minimum screw length of 1x nominal thread diameter in steel with a minimum tensile strength of 363 N/mm², at an application temperature of -20 °C to +100 °C.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 07695 Ring bolts rotatable high-strength grade 10 210 kB

Drawings

Ring bolts rotatable high-strength grade 10

Item selection/filter

Order No.Version 2D

D1D2D3HLSS1SWPermissible
load
kg
CADAcc.PriceOrder
07695-08151with hex keyM8254425471299,56300 46.15 €
07695-10151with hex keyM10254426471599,56400 46.15 €
07695-12181with hex keyM12305234551811118750 50.85 €
07695-16241with hex keyM1635613564241413101500 59.59 €
07695-20301with hex keyM2040704474301615122300 82.03 €
07695-24361with hex keyM2448845291361918143200 103.91 €
07695-30451with hex keyM306010561112452522,5174500 150.16 €
07695-08150without hex keyM825442547128116300 43.85 €
07695-10150without hex keyM1025442547158116400 43.85 €
07695-12180without hex keyM12305233551810138750 48.28 €
07695-16240without hex keyM1635613564241413101500 57.16 €
07695-20300without hex keyM2040704474301617122300 78.75 €
07695-24360without hex keyM2448845291361921143200 99.50 €
07695-30450without hex keyM306010862112452726174500 144.11 €
